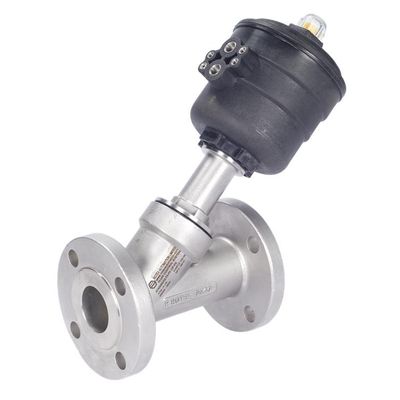

Rotex - Model 20050V01 -Angle Seat Valve

SHARE

Pressure Range(Bar): Normally Close -Above Plug : 0-25. Below plug : 0-8Normally Open : 0-16. Universal - Above plug : 0-25 | Below plug : 0-16.

Most popular related searches
water treatment plant
angle valve
water treatment
steam boiler water treatment
boiler water treatment control
boiler water treatment controller
boiler water control
boiler water treatment
bottle dispenser
beverage water treatment
  • Orifice Size (mm): 20 Port Connection: 3/4"
  • MOC: CF8 (SS304 Cast) | CF3M (SS316L Cast)
  • Solenoid: Weather Proof | Explosion Proof | Intrinsically safe
  • Media:Liquid | Gas | Steam | LPG | Water | Oil | Fuel
  • Application: Medical Sterilizers | Auto claves | Foods & Beverages - Boiler Steam control | Water treatment plant | Textile Dyeing & Drying | Bottling & Dispensing equipment | Ink & Paint Dispensing Unit | Laundry
  • Certificate: ATEX | CCOE/PESO | CUTR-EAC | IEC Ex | INMETRO | UKRAINE | CE | UL
  • Life > 10 Million cycles
  • Fast acting upto 1000 cycles per hour
  • Designed to work with absolute vacuum
  • Easily convertible from Normally Close to Normally Open or Double acting to Single acting
  • Modular Design
  • Material is CF8 (SS304 Cast) & CF3M (SS316L Cast)
  • Operator with threaded / NAMUR ports
  • 360 degree rotatable operator
