Anguil - Acid Gas Control - Wet Scrubbers

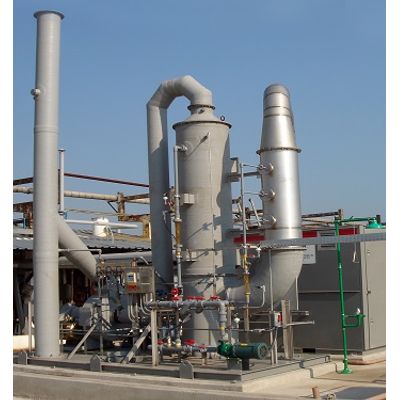

The Anguil Acid Gas Scrubber neutralizes inorganic acids that often exist in a process exhaust stream or are created during the oxidation of air pollutants. The module can effectively scrub a variety of acids including Hydrogen Chloride (HCl), Hydrogen Bromide (HBr), Hydrogen Fluoride (HF) and Sulfur Dioxide (SO2).
- 99.9+% Removal Rate Efficiency
- Regulatory Compliance Guaranteed
- Low pressure drop reduces electrical consumption
- Competitive capital equipment cost
- Rapid installation time on most systems
- Small equipment footprint
The acid containing stream is directed to a water quench located upstream of the scrubber module by an induced draft process fan located on the outlet of the scrubber. Within the quench, a re-circulation pump injects large volumes of water to cool the hot process stream, allowing the use of low-temperature materials of construction that are resistant to acid, such as Fiberglass Reinforced Plastic (FRP). Water then quenches the hot vapor and absorbs a portion of the acid. The gases exit the eductor and enter a countercurrent absorption column. Recirculation solution is fed to the top of the absorption column through a nozzle. The remaining acid vapors are absorbed into the solution while the gases pass through a mist eliminator before exiting the column. For most acid gases, sodium hydroxide, or another caustic, is added to control the pH in the sump to the neutral range.
- High temperature systems available for processes up to 1800 °F (982 °C)
- pH control system automatically monitors the solution to a neutral solution, optimizing scrubbing efficiency
- Conductivity controller regulates water discharge from the scrubber and ensures there is no salt buildup
- Automatic liquid level controls monitor the liquid in the sump
- Automatic fresh water make-up prevents water depletion
- High temperature safety shutdown
- Programmable Logic Controller (PLC) based controls with digital data recorder and remote telemetry. Truly integrated control system with the oxidizer.
- Variable Frequency Drive (VFD) allows for high volumetric turn-down during idle or low process conditions
- Completely shop assembled, pre-wired and tested prior to shipment
- Complete “turnkey” packages
- Forced or induced draft arrangements
- Diverse material of construction options depending on the acid and inlet temperature to the quench
- Skid or remote mounted panels and enclosure rooms available for system controls
- Custom designed options to meet space restrictions
- Winterization packages
- SO3 removal systems
