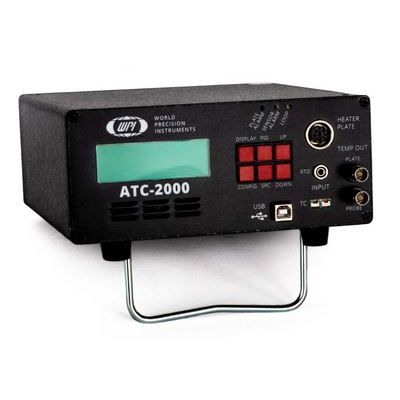

WPI - Model GRO-ATC2000 -Animal Temperature Controller
The ATC2000 Animal Temperature Controller is tuned at the factory. However, the PID parameters may also be set manually. The temperature resolution of the controller is 0.1°C. The rectal temperature probe has a 6-ft ultra-flexible, shielded cable and an RTD sensor. The metal heating plates (available separately) have built-in temperature sensors. Compatible with stereotaxic systems, the rigid, flat surface of the warming pads fits under the U-frame. Our homeothermic warming pads are washable with water and detergent. A heating plate and a probe are required for use with this unit. Please see the Accessories tab.
Maintain optimal animal temperature during research procedures
- REQUIRES TEMPERATURE PROBE AND HEATING PLATE
- Animal Temperature Controller with Adaptive mode–auto adjust PID regardless of animal size
- Plate`s internal temperature sensor prevents localized hot spots under animal with maximum temperature stability
- Compatible with RTD (resistive temperature device) and thermocouple probes
- Extremely quiet DC heater to facilitate electrophysiological recordings
- Three temperature sensor inputs
- Auto shutdown if the plate reaches 45°C
- The 61824 cable is around 1.5m long
- The heating plate cable is 1.1m long. 61800, 61830, 61840
Multiple temperature sensing inputs
The Animal Temperature Controller has three temperature sensing inputs.
- The resistive temperature device (RTD) probe input can be used to monitor an RTD rectal probe to control the animal temperature or to monitor ambient temperature, induction chamber temperature or any other temperature.
- When using a thermocouple probe, the thermocouple (TC) probe input can be used just like the RTD input. (A T type thermocouple must be used.)
- The heater plate also has an internal temperature sensor. The ATC2000 monitors this sensor to prevent the localized hot spots under animal.
Operational modes
The controller has three operational modes:
- Normal mode uses the configured sensor (RTD or TC) or the plate sensor to drive the control loop.
- Adaptive mode uses the temperature of the heated plate and the temperature of the subject to control. This approach is less prone to overshoot, but somewhat slower the normal mode, depending on the sampling rate used.
- Shutdown is a fail safe mode used if the plate temperature ever exceeds 45°C.
- Low noise temperature control system
- Adapts to different size animals automatically
- Accepts RTD and thermocouple probes.
- Small animal surgery
- Resolution 0.1°C
- Accuracy ±0.3°C
- Rat Sensor RTD Ø 2.0 mm tube with 3.5mm ball head
- Maximum DC Output 10V, 3A
- Temperature range Up to 45°C
- Power Universal AC adapter 90-264V Input, 12V@4.5A maximum output
- Dimensions 3.47x8.21x10.85" (8.8x20.9x27.6cm)
- Weight 11 lb. (5kg)
