Annapurna Agronics Machinery Pvt Ltd

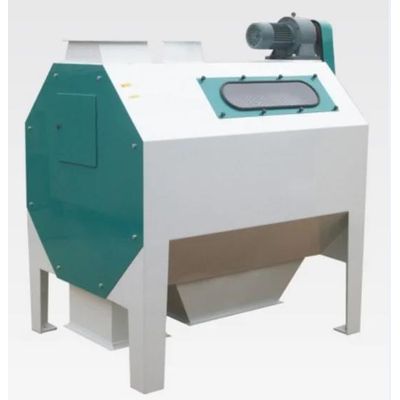

AnnapurnaDrum Sieve Machine

SHARE

Drum Sieve is a versatile machine used for efficient and accurate separation of solid materials based on their particle size. It consists of a cylindrical drum with perforated screens or mesh that allows the passage of particles of a specific size. As the drum rotates, the material is fed into it, and the particles are sorted into different size fractions based on their ability to pass through the screens. The Drum Sieve is widely used in industries such as agriculture, mining, and recycling, for tasks like grading, sorting, and separating materials. It offers reliable and customizable sieving capabilities, facilitating optimal material classification and improving overall process efficiency.

Most popular related searches
  • Model: Drum Sieve Machine
  • Manufacturer: Annapurna Agronics Machinery Pvt. Ltd.
  • Capacity: Up to 5 tons/hour
  • Power Requirement: 2-5 HP
  • Drum Size: 1200 mm x 3000 mm
  • Material: Mild Steel (MS) or Stainless Steel (SS)
  • Sieve Hole Size: Customizable (2 mm - 10 mm)
  • Machine Dimensions: 2500 mm (L) x 1500 mm (W) x 1800 mm (H)
  • Weight: Approx. 800 kg
  • Cleaning Efficiency: Up to 99%
  • Applications: Grain cleaning / de-stoning and impurities removal
  • Usage: Pre-cleaning and grading of grains and seeds
  • Motor Speed: 1440 RPM
  • Voltage: 380-440V / 50 Hz 3 Phase
  • Warranty: 1 Year
  • Optional Features: Dust collection system / Variable sieve sizes
