Preso - Model Ellipse AR -Annular Flow Device

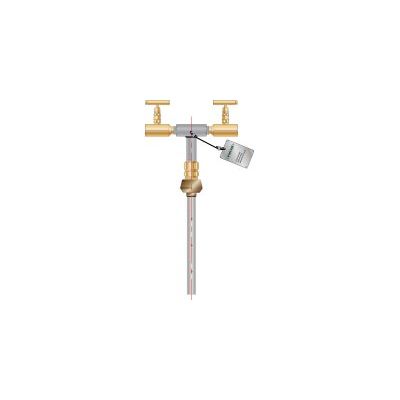

The Ellipse Model AR annular flow device is a multi-ported, self-averaging differential pressure flow element. Its innovative elliptical shape provides the lowest permanent pressure loss in the industry. The Ellipse flow meter is designed with a series of ports facing the upstream velocity pressures and flow sensing ports strategically located ahead of the trailing edge flow separation.
Most popular related searches
differential pressure flow meter
static pressure measurement
NIST traceable calibration
flow meter
fluid separation
traceable calibration
pressure monitoring
wastewater treatment
industrial gas
NIST calibration
- Patented elliptical design outperforms traditional devices
- Turndown Ratio: 17:1; no vacuum effects
- No moving parts equals long, trouble-free service life
- True static pressure measurement rather than a calculated value
- Overcomes loss of accuracy caused by fluid separation at the sensor body
- Single point pipe entry for DP, temperature and static pressure
- No dampening software required
- Lowest pressure loss in industry (typically 3% of DP in a 12" line) due to its patented aerodynamic profile
- NIST traceable calibration: Optional independent labs
- Size : 2…72 in.
- Temperature Range : Up to 800 °F
- Flow Range : 5.3…34,340 gpm
- Pressure Range :Up to 800 PSI
- Accuracy : ±0.75 %
