Preso - Model Ellipse AS -Annular Flow Device

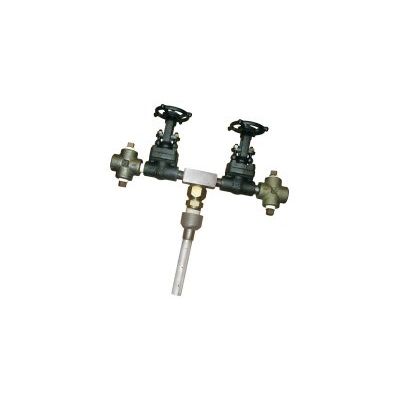

The Ellipse Model AS annular flow device is a steam flow meter designed to produce a differential pressure that is proportional to flow. Its innovative elliptical shape provides the lowest permanent pressure loss in the industry. The Ellipse flow meter is designed with a series of ports facing the upstream velocity pressures and flow sensing ports strategically located ahead of the trailing edge flow separation.
Most popular related searches
differential pressure flow meter
flow meter
static pressure measurement
steam flow meter
NIST traceable calibration
fluid separation
petrochemical water
traceable calibration
pressure monitoring
wastewater treatment
- Patented elliptical design outperforms traditional devices
- Turndown Ratio: 17:1; no vacuum effects
- No moving parts equals long, trouble-free service life
- True static pressure measurement rather than a calculated value
- Overcomes loss of accuracy caused by fluid separation at the sensor body
- Single point pipe entry for DP, temperature and static pressure
- No dampening software required
- Lowest pressure loss in industry (typically 3% of DP in a 12" line) due to its patented aerodynamic profile
- NIST traceable calibration: Optional independent labs
- Size : 2…48 in.
- Temperature Range : Up to 480 °F
- Flow Range : 2.6…21,130 gpm
- Pressure Range : Up to 600 PSI
- Accuracy : ±0.75 %
- Application Examples : Pharmaceutical
- Industries
- Chemical
- Industrial
- Oil & Gas
- Refining & Petrochemical
- Water / Wastewater Treatment
