Chengdu Pulse Optics-tech Co., Ltd.

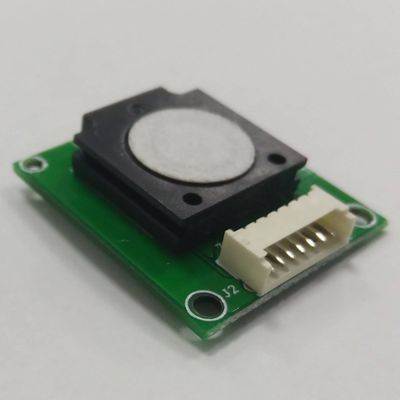

Pulse Sensor - Model PS5310 -Anti-Jamming Electrochemical Formaldehyde Sensor
Electrochemical Formaldehyde Sensor Maker: Electrochemical Sensors for Formaldehyde Detection, Anti-jamming, Temperature & Humidity Compensation, Long Lifespan.
Most popular related searches
formaldehyde monitoring
electrochemical sensor
portable air quality
air purification
air quality monitoring
electrochemistry
air conditioner
air purification system
formaldehyde detection
environmental monitoring
- Electrochemical principle
- Low power consumption
- High resolution, stability and accuracy
- Multi interface output
- Strong anti-jamming ability
- Quick response
- Long lifespan
- Revolution up to 1ppb
- Alcohol tolerance
- Short recovery time
- Full range temperature & humidity compensation
- Air Purifier
- Fresh Air System
- Air Conditioner
- Vehicle Air Purifier
- Air Quality Monitor
- Environmental Monitoring
- Handheld Air Quality Detector
- Gas Type: CH2O
- Effective Range: 0-2ppm
- Resolution: 0.01ppm
- Preheating Time: ≤3min
- Response Time: ≤60s
- Recovery Time: ≤60s
- Data Interface: UART TTL, 9600 bps
- Power Voltage: 4.5-5.5V DC
- Supply Voltage: <6mA
- Working Condition: Temp: -10-50?; Humidity: 15-90% RH
- Storage Condition: Temp: 0-50?; Humidity: 15-90% RH
- Life Time: >3 years (18-25? in the air)
- Maximum Size: 25.5mm x 23mm x 6.4mm
