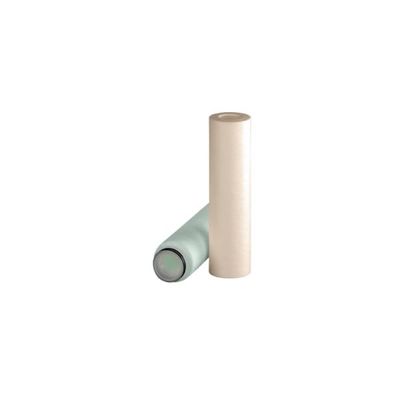

SupaSpun KilBac - Anti-microbial Depth Cartridge

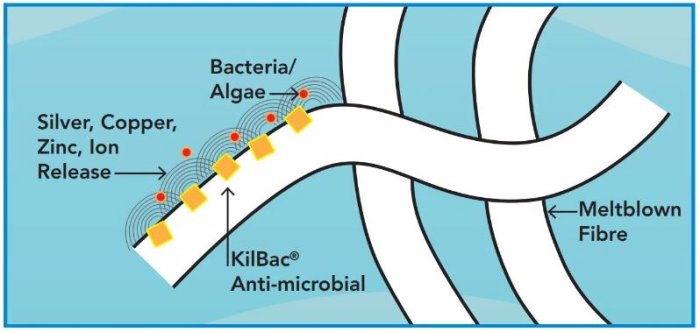

Rather than being based on nano-sized particles whose size and safety has been questioned in the past, our technology utilises micron-sized zeolite structures which are used as a carrier for the anti-microbial agent. By optimising the fibre diameter to the active particle size we maximise the surface area and hence the efficacy of the anti-microbial to the fluid stream being filtered.

• Silver (Ag) / Zinc (Zn) for bacteria control
• Silver (Ag) / Copper (Cu) for algae control

KilBac® fibres are blown continuously on to a central support core, with fibre diameters controlled to produce different pore sizes throughout the extrusion process. All the layers are inter-linked to offer maximum support while ensuring that the high void volume is maintained, but with increasing fibre density towards the cartridge central core; therefore resulting in true graded density depth filtration.

• Absolute removal ratings for consistent and reliable performance
• Graded density structure for maximum dirt holding capacity
• Anti-microbial and anti-algal technology
• Eliminates biofouling on filters in addition to controlling overall bioburden in water-based recirculation processes
• Prevents biofilm build-up on single pass systems, extending filter life and reducing overall operating costs
• Absolute ratings of 1 to 20µm (Beta Ratio 5000)
• Thermal bonding process minimises media migration and ensures minimal extractables
• Identification data embossed on every cartridge
• Advantage grade featuring moulded end caps and rigid outer support cage
