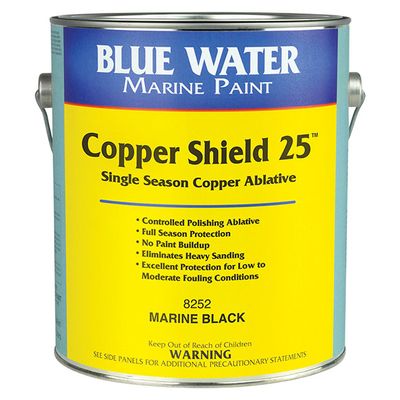

Copper Shield - Model 25 -Antifouling Paint Protection Against Barnacles, Algae and Hydroids

For use on fast fiberglass boats, as well as wood and steel hulls.

• ABLATIVE COPOLYMER ADVANCED TECHNOLOGY
• FULL SEASON PROTECTION
• Loaded with 25% copper, this self-polishing ablative gives full protection in moderate fouling conditions at the very best price on the market today.
• Self Polishing Ablative
• Full Season Protection
• No Paint Buildup
• Eliminates Heavy Sanding

• Royal Blue- 8251
• Marine Black- 8252
• Admiral Green- 8253
• Regatta Red- 8254

Size and Color

Gallon – 8251 Royal Blue, Gallon – 8102 Marine Black, Gallon – 8103 Admiral Green, Gallon – 8254 Regatta Red, Quart – 8251 Royal Blue, Quart – 8102 Marine Black, Quart – 8103 Admiral Green, Quart – 8254 Regatta Red.

• LIMITATIONS: Do not apply if material, substrate or ambient temperature is below 50°F or above 95°F.
• COLORS: Marine Black, Royal Blue, Admiral Green, Regatta Red
• FINISH: Flat
• VEHICLE TYPE: Acrylic
• SOLVENT TYPE: High flash naphtha
• VOC: 385 grams/liter
• SOLIDS BY VOLUME: 56%
• WEIGHT PER GALLON: 12 lbs (5.44 kg)
• RECOMMENDED DRY FILM THICKNESS: 3.36 mils dry film thickness (6 mils wet film thickness)

• Mixing and Thinning: Shake or mix thoroughly and stir continuously while using. Thin when necessary with Reducer 974.

• Theoretical Coverage: Depending on surface conditions, one gallon of bottom paint will usually cover over 400 square feet of the surface when brushed or rolled.

• Clean-Up: Use Naptha for cleaning equipment and paintbrushes.

• Estimated Dry Times: Bottom paints are designed for overcoating after an overnight dry. Prior to launching, allow a minimum overnight dry. If drying conditions are poor, or if the paint was applied too thickly, longer periods of drying will be required. Fresh coats of paint must be thoroughly dry before overcoating.

Surface Preparation: Surface must always be clean, dry, and properly prepared prior to painting. Failure to do so will lead to eventually blistering and/or peeling. All sanded surfaces must be wiped clean with Dewaxer-973 to remove sanding residue.

General Application: For use on boats below the true waterline. Can be brushed or rolled on fiberglass, wood, steel, and previously painted surfaces per application systems below. Do not use on aluminum. Apply at least 2 coats for best performance, as the life of the paint is proportional to the number of coats applied.

Yearly Repainting: Scrub bottom clean at haul-out. Repaint only if the old paint is sound and tight; if not, remove it by sanding or with paint remover. If the old paint is rough, sand it with 100-150 grit sandpaper. Prepare seams, nicks, and chips as below. Spot coat any scuffs with antifoulant. Apply 2 coats of antifoulant.

On Bare Wood: If seams are not flush, fill them with seam compound. Dry several days until skin forms. Do not sand. Fill nicks with trowel cement, dry hard, sand, apply antifoulant (reduced 10%) then follow with 2 additional unreduced coats of antifoulant.

On Bare Fiberglass: Dewax by washing with Dewaxer-973, remove dissolved wax at once with clean paper towels or rags; repeat; sand hard to a dull finish with 80-100 grit sandpaper. Fill any chips with trowel cement, dry hard, sand. Apply 5 coats of 8000A/8000B Bottom Protect High Build Epoxy Primer, then apply 2 coats of antifoulant.

On Bare Steel: Sandblast surface to a near white metal; remove blast residue with a broom and air hose. Wipe off with Dewaxer-973. Do not sand. Fill in any imperfections with a fairing compound. Sand smooth and wipe clean. Apply 5 coats of 8000A/8000B Bottom Protect High Build Epoxy Primer, then apply 2 coats of antifoulant.
