  4. Anvil - Hydraulic Grapples

AnvilHydraulic Grapples

SHARE

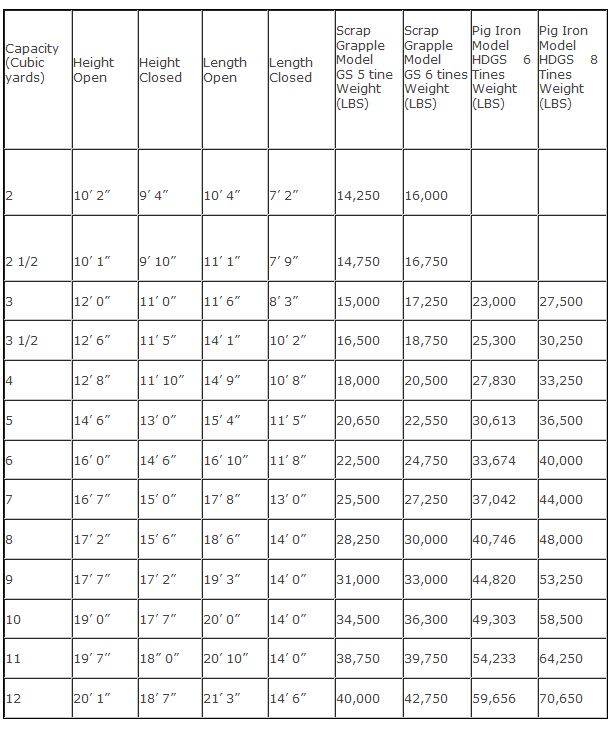

These units are separated by the number of tines each model offers. They are built using a modular system that allows all capacities in each model to use the same center section, rotation, cylinders and head weldment. This allows for lower costs and quicker deliveries on both new units and parts orders. This also allows for fewer stock parts for customers using multiple units of varying capacities.

Most popular related searches
  • Weld fabricated with 100,000 & 70,000 P.S.I. minimum yield steel.
  • Tines are T-1 (A514) alloy steel for longer wear life.
  • Tine points are replaceable 500 BHN wear resistant alloy steel.
  • Tines are available in narrow, semi-blade or fully enclosed design.
  • Pins are precision machined from 4140 heat treated steel.
  • Bushings are extra heavy, thick-walled and made of chro-mium molybdenum 4140.
  • Sheaves are large diameter with a flame hardened cable groove.
  • Guide rollers are chrome-moly alloy steel, heat treated and carburized to 470 Brinell.
