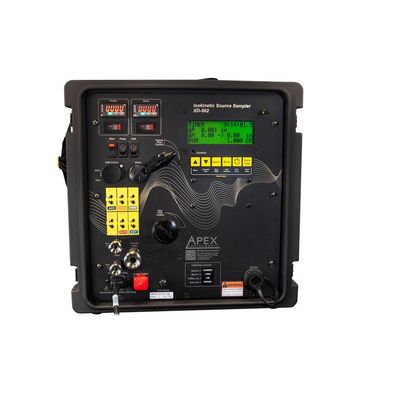

Apex - Model XD-502 -Digital Source Sampling Console
The new generation of our XD-502 Digital Source Sampling Console monitors gas velocities, temperatures, sample ?ow rates and volumes for maintaining isokinetic sampling conditions. This next generation console includes highly requested features and capabilities from our customers and can easily be adapted to all isokinetic testing methods including OTM-45. Presenting a new look and feel, some new features include a physical buzzer that has been added to front of the console for the traverse point alarm, along with a Wi? module for increased ?exibility of connection, and an additional USB C charging port.
This new generation XD-502 also includes increased processing power, multiple language support within the software and data export, and general software and ?rmware improvements. The console can be ordered without the internal pump and used with any external pump.
- Rugged lightweight case with 3 heavy duty stainless steel handles
- Additional USB A added on the front of the console for data export without the need for a PC
- Easy-to-use display, indoor or outdoor readable
- Wi? module for increased ?exibility of connection from the PC to the console
- Adjustable physical buzzer added to the front of the console for the traverse point alarm
- Rugged lightweight case with 3 heavy duty stainless steel handles
- Additional USB A added on the front of the console for data export without the need for a PC
- Easy-to-use display, indoor or outdoor readable
- Wifi module for increased ?exibility of connection from the PC to the console
- • Adjustable physical buzzer added to the front of the console for the traverse point alarm
- Display: 4×20 character backlit trans?ective liquid crystal display, including membrane switch for navigation of menu and sampling operations
- Dry Gas Meter: Model SK25EX, with 100 CPR quadrature encoder, 0.7L/rev., 41 Ipm max
- Flow Indicator: Precision-machined stainless-steel ori?ce with a pressure transducer, range 0 – 5 in H2O (1245 Pa) resolution of 0.01” (1 Pa)
- Temperature Measurement: 8-channel individually isolated type-K thermocouple meter, °C/°F selectable, -200 °C to 1372 °C range. (-328 °F to 2502 °F)
- Probe Temperature Control: Compact, 1/32 DIN auto-tuning indicating temperature controller with separate 25-amp solid-state relay; type-K jack for input
- Digital Pressure Transducers: ΔP +/- 1.0” (+/-249 PA) and +/- 10.0” (+/-2491 Pa) range bi-directional with 0.001” (1 Pa) resolution ΔH +/-5.0” (+/-1245 Pa) range bi-directional with 0.01” (1 Pa) resolution (ΔP automatically selects appropriate transducer for current ?ow)
- Data Export: USB batch downloads using included software
- Alarm Buzzer: 12V
- Vacuum Gauge: Digital Scale, 0 to 30” Hg or 0 to 100kPa
- Umbilical Connection:
- Electrical: 5 pin conductor circular connector with ground
- Sample Inlet: 1/2” stainless steel instrumental quick-connect (alt. sizes available)
- Pitot Connections: 1/4” stainless steel instrumental quick-connects
- Thermocouples: aux, stack, probe, oven, ?lter, exit
- Power: Supply 120V, 150W, 24V/6.3A, IEC C-14 Inlet.
- Dimensions: H17” x W17” x D12” (43 cm x 43 cm x 30.5 cm).
- Weight: 40 lbs (18 kg) base
- Internal Sample Pump: KNF Dual Head Diaphragm, 70 lpm free ?ow, 21 lpm @ -50kPa, max vacuum -85 kPa, 24 VDC Brushless Motor
- Weight: 40 lbs
- Dimensions: 12 × 17 × 17 in
