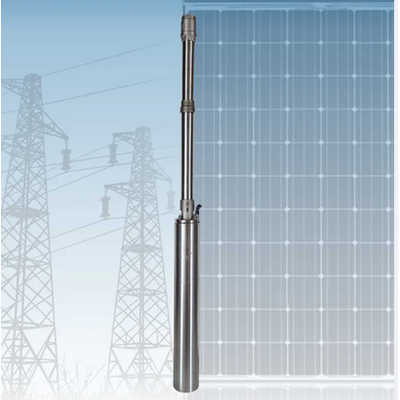

API - Model 12H -AC/DC Hybrid Helical Pump
Water conditions and pipe size will alter PSI rating. Hard, dirty water, undersized/kinked pipe, rubber vs. plastic pipe all effect the output performance of the pump/system. Solar Panels (PV) are available to purchase, we can provide assistance with sizing.
Most popular related searches
tank level control
water level sensor
float switch
pressure switch
solar pump
plastic pipe
pump system
level controller
level sensor
plastic piping
Requirements
- 600W Minimum recommended Input Power
- 10AWG, 2+ground Electrical Cable
- Plumbing from pump to final termination point
- Pump heads are field serviceable/replaceable by customer or OEM!
- Internal motor controller
- High efficiency DC Brushless motor with stainless steel Encapsulated Thrust Bearing.
- Microcast AISI 304 stainless steel helical rotor wet end adopts special wear-resistant rubber and hardened rotary shaft for increased wear resistance and service life.
- Water level sensor included with pump to prevent dry run.
- Inputs for Tank Level Control (Float switch optional)
- Battery or Generator Backup Optional (must be 60V DC minimum)
- Over/under-load protection.
- Over/under-voltage protection.
- Over-Temperature Protection.
- Lost phase and stall protection.
- Lightening and Surge Protection.
- Can be used with most switch types (float, pressure switch, etc.) Vertical or horizontal installation up to 90°.
- Certifications: CE, TUV SUD, UL, ISO9001, ISO14001
- Motor Power Range: 0.5-1.5HP
- DC System Input Power
- Vmp: 60-380 VDC,
- Voc: 440V (Max Voltage)
- Imp: 12A
- AC System Input Power
- VAC: 1 Phase, 90-240 VAC
- Imp: 10A
- 12.1 GPM (Max Flow Rate)
- Max Lift is 459ft (adding pressure tank/switch will alter max lift)
- 2 year Manufacturer Defect Standard Warranty
- 304 Stainless Steel Construction
- 1-1/4 NPT Female Pump Outlet
- Pump Length 4.6ft
- In-House Tech Service
