ALCI - Appendaun Lifter

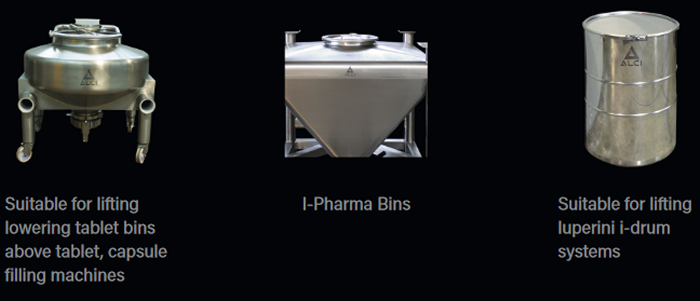

Appendaun Lifter designed for standard Alci I Pharma Bins as well as existing or customised Bins.
APPENDAUN

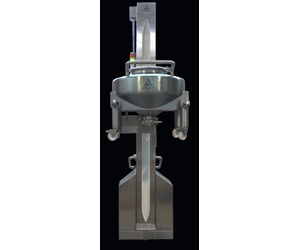

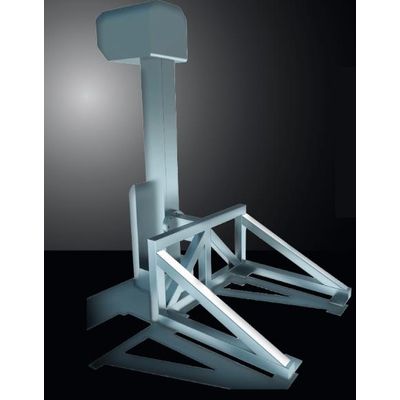

The lifting column Appendaun is a machine designed to lift the bin and drums, and lead them in a position of feeding or unloading of machines such as tablet press, Tablet Counting machines packaging machines, capsule filling machines, granulators. Also ideal to bring in working position, feeders, pneumatic conveyors, mills.
SAFETY FEATURES AND GMP:

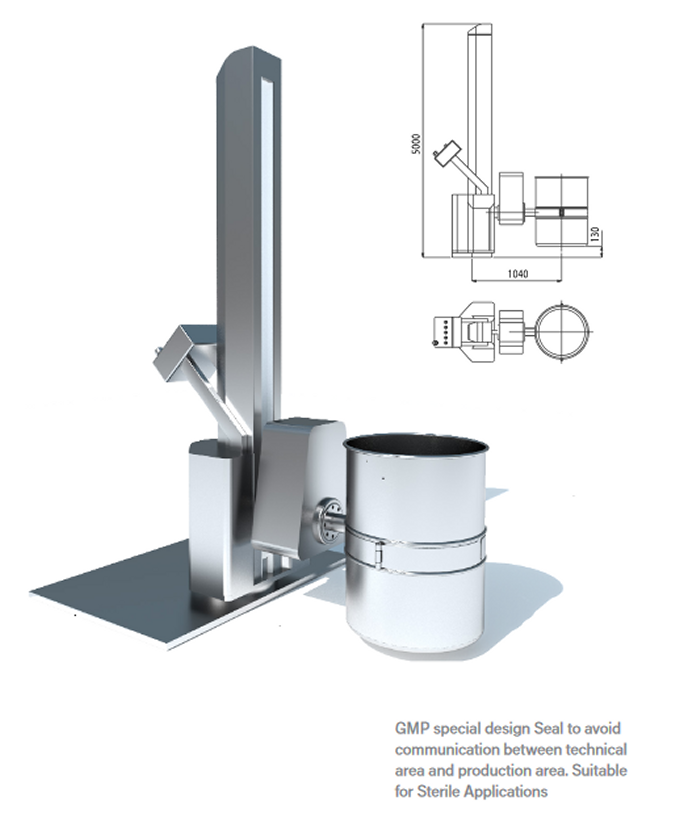

GMP Dented belt lifting system with Safe blocking features in case of accidents, smooth and clean seal to avoid communication between technical area and production area. Suitable for Sterile Applications.

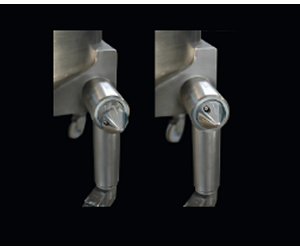

Bin Blocking Cone with safety sensor.
Mutti Purpose Drum Lifters and Blenders suitable to be able to lift, feed and discharge into a Bin/Drum Below, with Mill or Sieve in Line.
The basic version of the column Appendaun allows easy lifting and lowering of the bin or drum. In addition to the basic version, you can have more sophisticated units that enable the rotation of the bin and drums of 180 °. either manually or automatically, or in addition to previous features, enable mixing with 360 ° rotation (mixing version) before unloadingJhe perfect seal on slider, and treatment of surfaces, make them particularly suitable in sterile environments.
- High flexibility to adapt to the needs of different systems for handling powders and granules
- Body very thin for a better impact in the lay-out
- Possibility to change the platform to accommodate the bin, drums or other equipment on request
- Design according to cGMP ATEX Compliance
- Axial rotation manual or motorized.
- Fall-certified safety system standard on all our columns.
- 21 CFR Part 11
- Siemens PLC on all versions, PLC or other type on request.
- HMI.
- Possibility of having the system on wheels
