AquaCheck

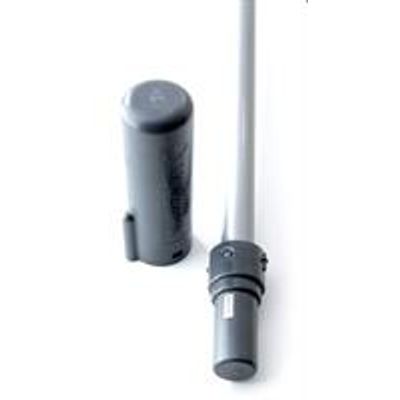

AquaCheck - Basic Wireless Continuous Logging Probe
FromAquaCheck
The AquaCheck Basic Wireless probe is a capacitance-based soil moisture and soil temperature monitoring device offering up to six sensors per probe. This version of the soil moisture probe is equipped with on-board memory and a battery pack. Data sampling can be set at intervals of 15, 30 or 60 minutes. Battery life of up to 12-18 months can be expected. The data can be uploaded using the AquaCheck wireless hand logger (Shuttle). Application: annual crops, orchards and nurseries.
Most popular related searches
soil temperature monitoring system
soil temperature monitoring
temperature monitoring system
soil temperature sensor
temperature sensor
rain gauging
temperature monitoring
rain gauge
soil monitoring system
soil sensor
General Specifications:
- A capacitance based continuous logging probe.
- Probe lengths from 200mm to 1200mm (refer to the link below for the various options available).
- Up to six soil moisture and soil temperature sensors depending on the probe configuration.
- Shaft diameter: 32mm
- Data Storage Capacity on Basic II Wireless: 2047 logs (21 days on 15 min intervals or 42 days on 30 min intervals).
- Compliancy: CE, FCC certified.
- Communication Interface options:
- Short range proprietary RF at 868/918 MHz – 10mW power output.
- Communication with the AquaCheck wireless hand logger (Shuttle).
Technical Specifications:
- Power requirement: 10uA (0,01mA) during idle; 20mA for 2 seconds during measurement.
- Sensor Spacing: every 100mm or 200mm (refer to the link below for the various options available).
- Sensor resolution: Approximately 13 bits.
- Temperature sensor: 0 to 51 oC, steps of 0.2 Degrees.
- Battery supply: 2x 3.6V Lithium-Ion batteries connected to a 14-pin accessory board.
- Pulse Rain Gauge
