Aqualitec - Model Omega 1000 -Belt Filter Press
The OMEGA Belt Filter Press is designed for continuous mechanical dewatering of municipal and industrial sludge. Aqualitec`s smart designs offer user-friendly operation, optimum space efficiency, and high operational efficiency ratios. Aqualitec offers a wide range of belt filter presses to match any plant size. All products offer a slew of benefits to municipal and industrial customers.
- high quality components (only stainless steel construction)
- low energy consumption and operating cost
- clean operation
- robust operator safety devices
- easy access for supervision and maintenance
- visual control of the sludge during dewatering

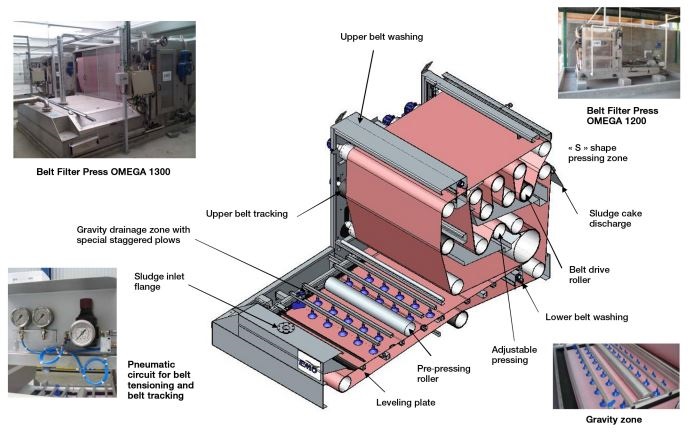

The OMEGA press consists of a stainless structural frame, sludge inlet and distribution assembly, long gravity thickening zone, adjustable medium pressure section, high pressure "S" shape zone, variable speed drive, continuous belt washwater section, automatic belt tracking and automatic belt tensioning systems, filtrate collection pans, internal wiring and piping, electric control panel (optional).
Model: Belt Width
- OMEGA 1100: 1,00 m
- OMEGA 1150: 1,50 m
- OMEGA 1200: 2,00m
- OMEGA 1250: 2,50m
- OMEGA 1300: 3,00m
