Aquamonix - Model PS1000 -Pressure Sensor

SHARE

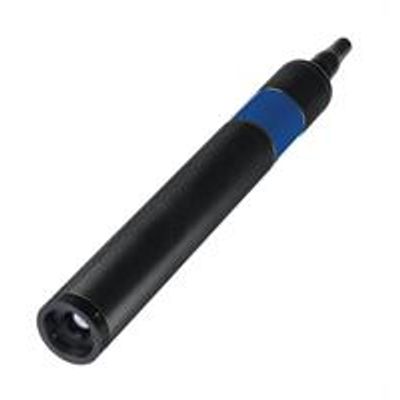

The Pressure Sensor PS1000 has a standard, 2-wire, loop powered, 4-20mA output with an option for 0-2.5Vdc suitable for a wide range of data Loggers, process controllers and other third party devices. A durable corrosion resistant body, ceramic capacitance transducer and double O ring sealing ensures suitability for harsh environment applications.

Most popular related searches

water quality and level sensor

pressure sensor

level and pressure sensor

water quality sensor

water level sensor

analog water sensor

process monitoring

Measurement Technique: ½” ceramic capacitance transducer
Ranges Available
Gauge: 2.5, 5, 10, 20, 40, 75, 100m
Absolute: 20, 40, 75, 100m
Sensor Output: 4-20mA, 0-2.5V, RS232 (via Serial Breakout Adapter: 085-0080), SDI-12 (via SDI-12 Converter: 7SDI-1000)
Closed Vent System (CVS): Gauge sensors must be fitted with a CVS
Power Supply: 8-30V DC (loop powered)
Dimensions: 328mm x 47mm (12.91” x 1.85”)

Loop powered – battery or solar
Broad range of outputs – 4-20mA, 0-2.5VDC, RS232 and SDI-12
0.1% FS accuracy for pressure
Temperature output
Field re-ranging and calibration
User inputs for fluid density and local gravity
Double O-ring design and moulded cable gland
Acetal construction
½” diameter ceramic capacitance transducer
Long term stability better than 0.2% per annum
Optional SDI-12 adapter for serial output
Optional threaded fitting for process connection
