Aquar System - Model QCS -Paper Quality Control System
The main purpose of paper (cardboard) web quality control system (QCS) «A 3000» is controlling of MD and CD profiles of the products quality parameters. The quality control system is also a source of data for process control system and quality parameters regulation. The system of "A 3000" is an intelligent measuring software and hardware control system of the products quality parameters, which is implemented with the use of modern technology and scientific achievement of our company.

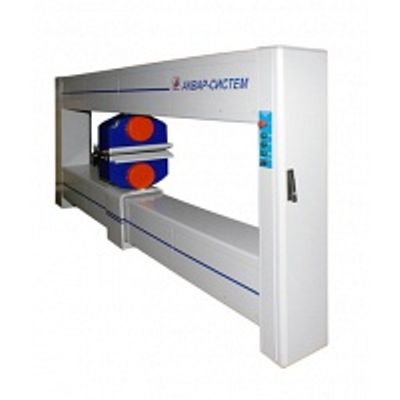

The quality control system mechanical part provides maximum movement accuracy of measurement sensors across the full width of paper web controlled, which allows the measurement with minimum error. While developing the high-precision measurement platform, were solved the main problems of fundamental importance for the effective operation of the system.
The first - it is drive technology, that ensures synchronous movement of measuring platform with mounted sensors.
The second - it is effective measures for compensation impacts that affect the accuracy of measurements, including temperature.
- Controlled web width : 1200-6300 mm
- Carriages synchronous movement accuracy : ±0.1 mm
- Carriages coordinates accuracy : ±0.5 mm
- Carriages synchronous rotation angle : ±30°
- Working gap for measuring sensors : 12 mm
- Carriages linear movement speed : 0-0.5 m/s
- Power of induction motor : <0.5 kW
- Temperature working range : +5...+60°C
- Ambient humidity : up to 100%
