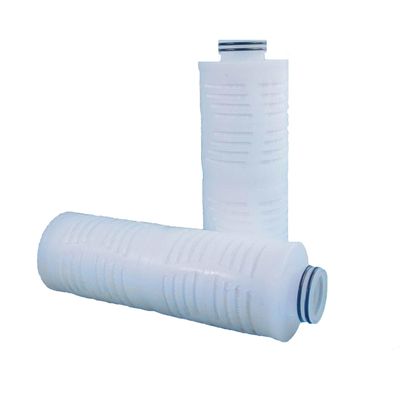

ARC - Model AFL -All Teflon Filter Using PTFE Membranes
All Teflon Filter using PTFE membranes and PFA core and cage, have great corrosion resistance and durability in highly corrosive acids, bases and organic environment. After post treatment with 18.2 M, cm water can provide very high cleanliness level filters, ideally suited for corrosive chemicals and gases filtration in the semiconductor industry. From raw materials purchase, transport to production and storage all operations follow ISO 9001 quality management system. The filter are manufactured, tested and packaged in a cleanroom to ensure products cleanliness. The filters are 100% intergrity tested prior to shipment, and provide the higher level of cleanliness filters for high cleanliness environment filtration.
Most popular related searches
ISO 9001 quality management system
filter membrane
PFAS filter
filter element
steam sterilizer
steam sterilization
PFAS
filter testing
filter membrane media
chemical filtration
- Outer Cage: PFA
- Inner Cage: PFA
- Endcaps: PFA
- 0-ring & Gasket: FEP Encapsulated Viton /Silicone
- Filter Media: PTFE Membrane
- Ratings 0.02-0.45micron
- Absolute Filter Rating
- High surface area
- Long service life
- FDA listed all polypropylene components
- OD:3.26"(83mm)
- Length: 4",10"
- Maximum Operating Pressure: 0.52 MPa (5.2 bar; 75.4 psi) @ 25°C , 0.12 MPa (1.2 bar; 17.4 psi) @ 170°C
- Maximum Differential Pressure (forward): 0.43 MPa (4.3 bar; 61 psi)@ 25°C, 0.05 MPa (0.5 bar; 7.5 psi) @ 170°C
- Maximum Reverse pressure differential: 0.3 MPa (3.0 bar; 43.5 psi) @ 25°C,0.05 MPa (0.5 bar; 7.5 psi) @ 170°C
- Recommended Changeout Pressure: 0.24 MPa (2.4 bar; 34.8 psi) @ 25 ?
- TOC recovery : <15 particles / 10 ml ≥ 0.2 μm@ 5 L/min DI water flow
- Forward Online Steam Sterilization( 1Bar): <10 ppb of feed after120 L flush @ 1 L/min
- Metallic extractables level: <40 μg / 10” device

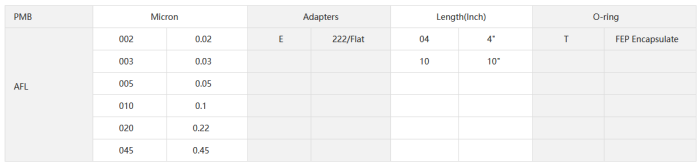

- Part No=AFL+Micron+Adapters+Length+O-ring
- EG: A 10 inch 0.22um filters with 222/Flat adapters and Viton O-ring
- The Part NO:AFL022E10T
