Archimede - Inverters for Electric ...

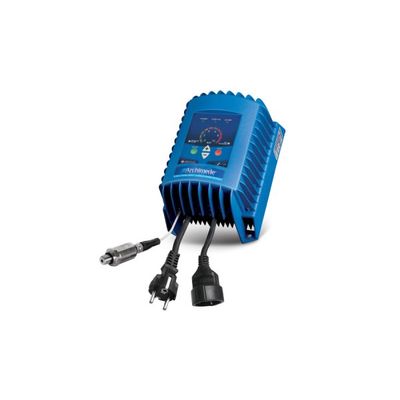

Archimede - Inverters for Electric Pumps

FromELECTROIL s.r.l.

SHARE

Archimede is a revolutionary concept of inverters for electric pumps with single-phase or three-phase asynchronous motors. Archimede® inverters are suitable for all types of electric pumps and allow optimal pressure regulation in water systems. They were designed and built to allow the construction of new systems, but also a quick and easy conversion of small domestic autoclaves. Archimede inverters replace all traditional systems such as pressure switches or flow switches. They guarantee smooth starts and stops, silent operation and substantial energy savings.

Most popular related searches

three phase asynchronous motor

asynchronous motor

pressure regulator

pressure transducer

pressure monitoring

pressure switch

water regulations

Codes EF.0840.01.00.01.001
Diet Single phase
Exit Single phase
Max engine power 1.10 kW
Max Output Current 9.00 A
Group communication Without it
Mounting type Wall

Inverters for wall mounting, suitable for electric pumps with a maximum power of 1.1 kW
Compact and robust, with high protection characteristics (IP65)
Complete with connection cables to the mains and the motor
HS16 pressure transducer with M12 connector cable included, Plug&Play solution
Maximum simplicity of installation and commissioning
Simple and intuitive micro-LED membrane synoptic control panel
Shell in polycarbonate loaded with glass fiber with a high degree of mechanical resistance and non-deformability, even in the presence of significant temperature variations
The IMMP1.1W models are also available in the version with the wireless BlueConnect (BC) system, for paired operation

Single-phase inverter power supply voltage 1x(100-244)V
Single-phase inverter output voltage 1x(100-244)V
Maximum motor power up to 1.1kW (1.5 HP)
Maximum output current 9A
Pressure measurement range from 0 to 10 bar
Natural convection cooling
