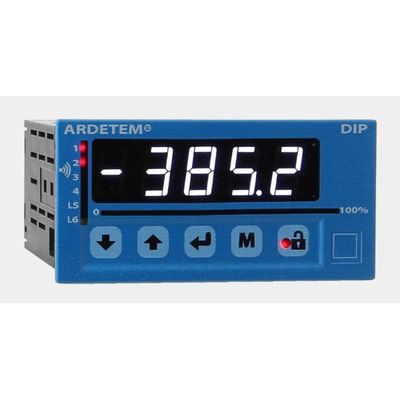

Ardetem - Model DIP110 -Two-Colour Universal Digital Panel Meter
The DIP110 is a versatile, 4-digit digital panel meter designed for industrial applications where precision and robust operation are paramount. Featuring an IP65-rated front, its 14mm high display enables clear visibility in various lighting conditions, making it suitable for industrial control environments. It offers users flexibility with two color options, red and white or red and green, to cater to different aesthetic or visibility requirements. The unit supports programmable settings via its intuitive front panel or through the SlimSET software, providing adaptability for diverse measurement scenarios. The unit's slender panel design facilitates mounting in confined spaces. It manages, displays, and communicates various measurable magnitudes, making it an integral part of process and temperature monitoring systems. The meter's programmability via a simple 5-key interface and compatibility with a μUSB connection adds to its ease of use in sophisticated monitoring and data transmission tasks.
The DIP110 two-colour universal digital panel meter 4 digit is a high-precision programmable unit with IP65 front protection.
Each unit is equipped with a 14mm high two-colour 4-digit display, the brightness of which makes it ideal for use in industrial control rooms.
The extra thin front panel makes it easy to fit into cabinet fronts.
It can be used to display, control and transmit data of any measurable magnitude.
Easily programmable from the front panel via a 5-key keypad or SlimSET software using a standard μUSB cable (optional)
- Programmable integration index
- Sensor or line break detection
- Self-diagnosis
- Input overrange
- Linearisation
- Scale shift (slope and offset)
- Brightness adjustment
- Quick display
- Simulation function
- Display colour change
- Display: +/- 10000 points (4 digits)
- Electroluminescent in red and green or red and white, to be specified at time of order
- Display format 48 x 96 mm
- IP65 front panel
- Universal input: mA,mV,V,TC,PT100,resistance,…
- Accuracy class: 0.1
- Programmable scaling factor
- Special linearisation
- 2/3-wire sensor supply
- Front panel or software programmable
- Universal power supply 20 to 250 VAC and 20 to 250 VDC
