- AREACH - 40*40 cells of Alumina Blocks
AREACH - 40*40 cells of Alumina Blocks
Direct contact heat exchanger/Ceramic block heat media is regenerative after-burning – also known as regenerative thermal oxidizers (RTO), which is used to destroy Hazardous Air Pollutants (HAPs), Volatile Organic Compounds (VOCs) and odorous emissions etc. Utilize ceramic regenerators to preheat incoming process air, retain heat or combustion air in order to lower operating costs1. Application: RTO for industry, air pollution control equipment, VOCs Treatment
2. Material : Alumina ( 60%)
3. Regular sizes : 100*100*100MM, 100*150*150MM, 150*150*150MM, 150*150*300MM.
4. Cells : 40*40

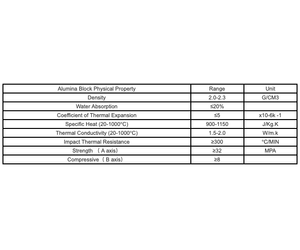

Density ：2.0-2.3
water Absorption：≤ 20%
Coefficient of thermal expansion：≤5x10-6k -1
Specific Heat (20-1000℃)：900-1150J/Kg.K
Thermal Conductivity (20-1000℃)：1.5-2.0W/m.k
impact thermal resistance：≥300℃/Min
Strength （ A axis）：>32MPA
Compressive （ B axis）：>8

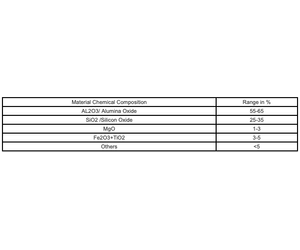

AL2O3/ Alumina Oxide：55-65%
SiO2 /Silicon Oxide ：35-45%
MgO：1-3%
Fe2O3+TiO2：3-5%
Others：<5%
Economical costs.
Low pressure loss.
Widely used in industrial field.
High heat storage.
Low heat expansion .
High specific heat capacity .
High specific surface area .
Low press drop.
Low thermal resistance.
Good thermal conductivity .
Energy saving.
RTOs use a ceramic media to store and release heat on a dynamic flow cycle. 40 cells of alumina blocks as its main purpose is to achieve higher heat transfer efficiency···
Alumina blocks is the key components of the thermal storage system widely used in RTO media and maintenance.
