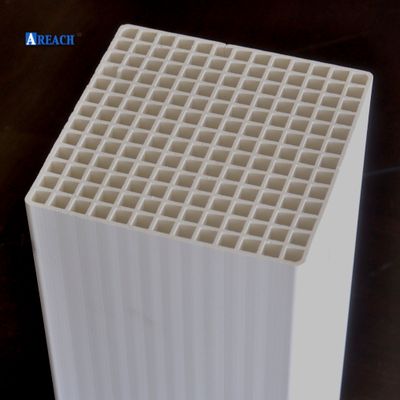

AREACH - Model 13*13 cells -Dense Alumina blocks
Heat absorbing ceramic mass with its great advantage of combination of high heat recovery with low-pressure drop , Is a type of heat exchanger where heat from the hot fluid is stored in a thermal storage medium before it is transferred to the cold fluid. As a key components of the thermal storage system, applies to recover thermal energy in RTO (Regenerative Thermal Oxidizers) , Volatile Organic Compounds (VOCs) and odorous emissions etc. The packing material was orderly placed into the RTO to form a media bed.1. Material : Dense Alumina
2. Sizes : 100*100*100mm, 100*150*150mm, 150*150*150mm, 150*150*300mm.
3. Application :RTO for industry , air pollution control equipment.
4. Cells : 13*13

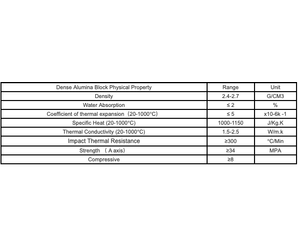

Dense Alumina Block Physical Property
Density :2.4-2.7
water Absorption:≤ 2%
Coefficient of thermal expansion（20-800℃）≤ 5x10-6k -1
Specific Heat (20-1000℃) :1000-1150J/Kg.K
Thermal Conductivity (20-1000℃)：1.5-2.5W/m.k
impact thermal resistance：≥300℃/Min
Strength （ A axis）：≥34MPA
Compressive（ B axis）：≥8

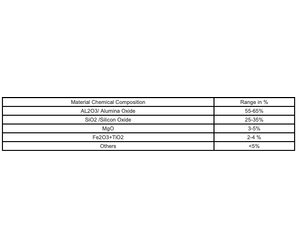

Material Chemical Composition
AL2O3/ Alumina Oxide：55-65%
SiO2 /Silicon Oxide ：25-35%
MgO：3-5%
Fe2O3+TiO2：2-4 %
Others：<5%
Higher heat storage.
Higher Alkali resistance .
Small resistance loss.
Outstanding crack-resistance.
Low heat expansion .
High specific heat capacity .
High thermal shock resistance.
Good Thermal Conductivity .
Dense Alumina as a heat exchange media , is prior to other materials for its water absorption which makes it a perfect option to applied in RTO products applies to recover thermal energy in RTO (Regenerative Thermal Oxidizers)
