AREACH - Model 40*40 cells -Dense Cordierite Blocks
A heat exchanger mass consisting of a packing of ceramic honeycombs elements that offers the most open area and the lowest pressure drop ,also by the advantage of small heat resistance, good thermal conductivity, excellent thermal shock resistance, realize quickly exchanging heat, reducing energy in the strict sense (up to 97% of true thermal energy can be recovery). The cellular structure of a honeycomb is modeled after nature – a solution that produces the largest possible surface with the smallest possible volume.With his high performance makes it best choice for heat exchange and horsepower usage when used with a RTO. it cyclically accumulate and release heat connected one to another at the top of a combustion chamber in RTOs.1. Material : Dense Cordierite
2. Sizes : 100*100*100mm,100*150*150mm,150*150*150mm,150*150*300mm
3. Application : RTO for industry , air pollution control equipment.
4. Cells : 40*40

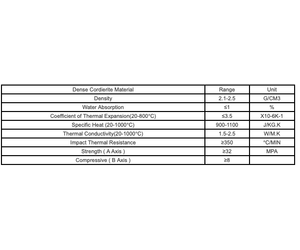

Physical Property
Density ：2.1-2.5G/CM3
water Absorption ≤1%
Coefficient of thermal expansion（20-800℃）≤ 3.5x10-6k -1
Specific Heat (20-1000℃)：900-1100J/Kg.K
Thermal Conductivity (20-1000℃)：1.5-2.5W/m.k
impact thermal resistance≥350℃/Min
Strength （ A axis）≥32MPA
Compressive（ B axis）≥8

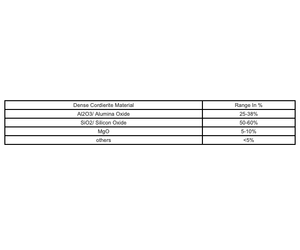

Material Chemical Composition
AL2O3/ Alumina Oxide：25-38%
SiO2 /Silicon Oxide ：50-60%
MgO：5-10%
Others<5%
High thermal shock resistance.
Long service life.
Low maintenance costs.
Good Thermal Conductivity .
Good Thermal shock resistance .
Heat exchange and storage .
Low drop loss.
also by the advantage of small heat resistance, good thermal conductivity, excellent thermal shock resistance, realize quickly exchanging heat, reducing energy also reduce downtime with more this effective structured medias.in the strict sense (up to 97% of true thermal energy can be recovery),
