AREACH - Model 50*50 Cells -Dense Alumina Blocks
Over the past few decades, several different types of heat transfer media (ceramic package) have been used for RTOs. Three main categories are random packing, monolithic structured block and corrugated structure packing. Ceramic blocks ( regenerative material) are widely used in the RTO projects, which is one of the air pollution control system, RTOs are always used in industries of pharmaceutical, chemical, electric manufacturing, automobile and machinery manufacturing, metallurgical ,and others who needs to dispose exhaust gas. By the advantages of corrosion resistance and reducing the exhaust emission of thermal equipment, alleviating the air pollution and improve the environment, they are typically used in RTOs.Most popular related searches
air pollution control system
pollution control system
air pollution control
air pollution
random packing
exhaust emissions
air pollution system
chemical manufacturing
ceramic structured packing
emissions equipment
- Low pressure loss;
- Low heat expansion;
- High specific heat capacity;
- High specific surface area;
- Low pressure drop;
- Low thermal resistance;
- Low operating and maintenance costs;
- High heat storage;
- Good thermal conductivity;

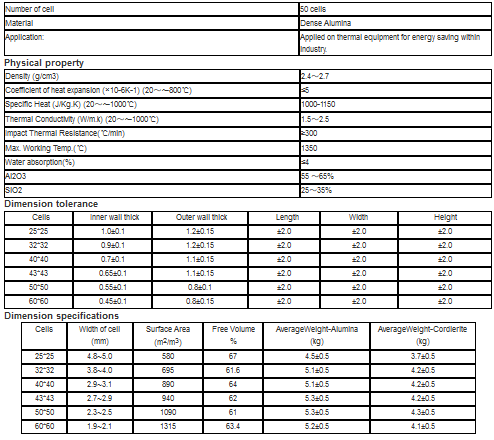

Physical Property
Density 2.4-2.7
water Absorption≤ 2%
Coefficient of thermal expansion（20-800℃）≤ 5x10-6k -1
Specific Heat (20-1000℃):1000-1150J/Kg.K
Thermal Conductivity (20-1000℃):1.5-2.5W/m.k
impact thermal resistance≥300℃/Min
Strength （ A axis）≥34MPA
Compressive（ B axis）≥8
Material Chemical Composition
AL2O3/ Alumina Oxide:55-65%
SiO2 /Silicon Oxide :25-35%
MgO:3-5%
Fe2O3+TiO2:2-4 %
Others<5%
