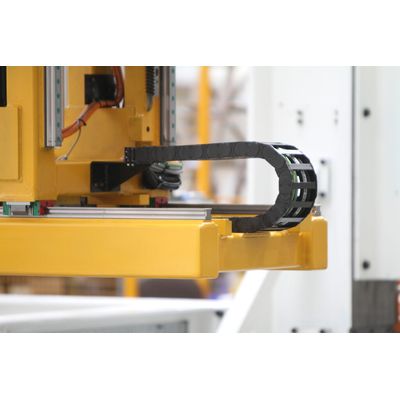

ARISA Transfer Systems for Moving Parts

ARISA - Transfer Systems for Moving Parts

Our transfer systems are engineered to move parts smoothly and precisely through every stage of the stamping process. Two options of installation: front-to-back and leht-right through-the-window. Both types of transfer are synchronized with the press motion to grip, lift, advance, and release parts with consistent accuracy. This ensures stable part handling, high production rates, and reduced risk of damage to dies or parts. With modular designs and flexible configurations, our transfer systems can be adapted to a wide variety of press sizes, part geometries, and production requirements. Whether handling simple stampings or complex formed parts, they provide the speed, reliability, and control needed for modern transfer press operations.

Transfer control either integrated with the press HMI or as a standalone control with independent control and drive cabinet.
Air cooled Siemens-Servomotors allows high dynamic movements and avoids over-heating.
Servo motion control created and coordinated with press motion when integrated into the press control.
All movements of the axis use a rack and pinion system, with zero blacklash.
Linear guides to eliminate excessive vibrations.
Equipped with counterbalance system for the lifting stroke.
Centralized lubrication pump and progressive distributors.
Quick and automatic change transfer bars.
Fully adaptable to any customer gripper system, with flexible mounting and clamping options.
Exclusive software vibration cancellation that increase the productivity
OptiTransfer optional module for increasing the efficiency, performance and production.
Both possibilities: front-back transfer and through the window left-right, adaptable to any production line.
New transfers and retrofit transfer systems.
