Arjay Engineering Ltd.

- Model 2880-FCM - Foam Control Monitor

From

0

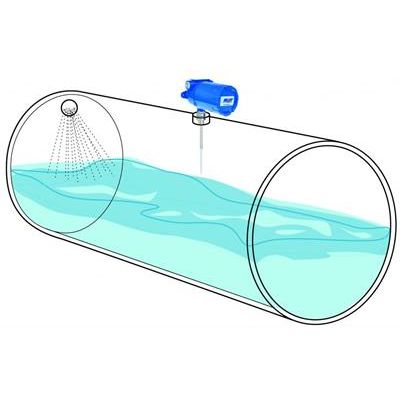

Reliable monitoring of foaming conditions in process applications. Over 40 years of capacitance experience stands behind the 2880-FCM transmitter. The sensing probe continuously monitors the capacitance of the inserted probe. As the foam intrudes into the normal air or vapour space of the probe, the capacitance changes and a proportional signal output is provided. The unique processor and oscillation frequency combination make the 2880-FCM ideal for foam suppression applications. These include oil/water knock-out and treater trains, bulk separators, coalescing chambers, pre-compressor manifolds, wastewater sumps and ponds.

  • No moving parts
  • Electronics is integral to the probe
  • High corrosion resistant Teflon and stainless steel wetted parts
  • Capacitance technology for high sensitivity
  • HF capacitance technology does not require routine cleaning
  • Easy calibration and control set-up
  • Technical Specifications - Electronics

  • Operating Temp.: -20°C to +55°C
  • Resolution: .007% (.07 pF at 1,000 pF)
  • Accuracy: .04% of full scale pF
  • Power Input: 12 vdc or 24 vdc, 0.1 amp max., 100-240 vac +/- 10%
  • Communication: RS-485 Modbus

Control Interface

  • 2880-FCM: 0/4-20 mA non-isolated output
  • 2881-FCM: 0/4-20 mA isolated output
  • 2882-FCM: 0/4-20 mA non-isolated output and 2 x 10amp@240 vac, SPDT, dry relays

Optional: Viewing window of % Level LCD

  • Process Temp.: -60°C to +260°C (Teflon probe)
  • Pressure: 103 bar/10342 kPA/1500psi at stable temperature
  • CRN: ABSA-CRN #OF07450.2
  • Wetted Parts: 316SS and Teflon

Probe materials are eligible for NACE MR-0175 Compliance.
