Arjay - Model 4100-OWS -Full Display Oil Thickness Monitor

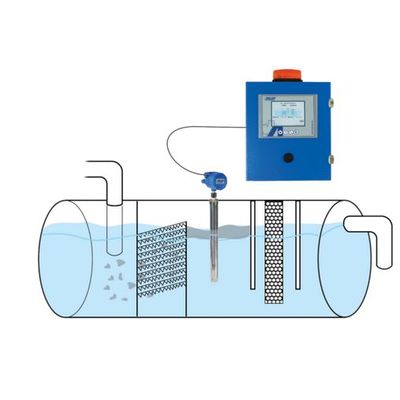

The 4100-OWS Oil Water Separator Monitor provides continuous interface monitoring of static level oil/water separators. This unique oil level system provides complete flexibility for monitoring oil water separators in one complete package. The 4100-OWS sensing probe monitors the capacitance field between the probe and the concentric shield. As the oil accumulates and displaces the water, the probe capacitance changes. This interface signal is used to provide outputs, displays and relay control.
Most popular related searches
oil-water separator
oil-water separation monitoring
oil-water monitoring
oil monitoring
oil separation
intrinsic safety
water monitoring
interface monitoring
thickness monitoring
capacitance probe
Optional Interfaces
- Analog Output 4-20 mA non-isolated
- Communication RS-485 Modbus
- No moving parts
- Remote electronics via standard twisted pair
- All set-up, calibration and diagnostics is done at the control panel
- All control wiring and interface is done at the control panel
- HF capacitance technology does not require routine cleaning
- Touch screen interface for easy set-up and user interface
- Tank view display for ease of reading
- Trend display of hour, day or month increments
- Single point calibration
- Relays for valve control, alarms and pump run-time
- Unique capacitance approach eliminates routine cleaning
- Control and interface panel mounts safely away from the process
- Operating Temp. 0°C to +55°C
- Resolution .007% (.07 pF at 1,000 pF)
- Accuracy .04% of full scale pF
- Power Input 24 vdc or 80-240 vac +/-10%, 1P, 50-60 HZ
- Display touch screen full colour
- tank view graphics,
- % and engineering units of oil
- trend line selectable hours, days or none
- Relay Output four SPDT, 10 amp @ 240 vac, dry Pump relay has a discrete run time with level re-set
- Enclosure Type 4 metal painted blue / IP 66
- optional Type 4X SS or polycarbonate
- Approvals to UL / CSA / CE
- IEC 61010
- Process Temp. -60°C to +260°C
- Ambient Temp. -60°C to +55°C
- Pressure 103 bar/10342 kPA/1500psi
- at stable temperature
- Process Connection available 2” npt threaded
- or flanged
- Explosion Proof CSA Div 1, Class 1, Groups C,D
- Intrinsic Safety Approved Intrinsically Safe when ordered with Approved Barrier in Control Unit
- CAN/CSA E60079-11:
- Class I, Groups A,B,C,D;
- Class II, Groups E,F,G;
- Class III, Encl.Type 4
- CRN ABSA-CRN #OF07450.2
- Wetted Parts 316SS and Teflon
- Probe materials are eligible for NACE MR-0175 Compliance
