Arjay - Model 4100-PRO -Multi Oil/Water Interface Tank Profiler

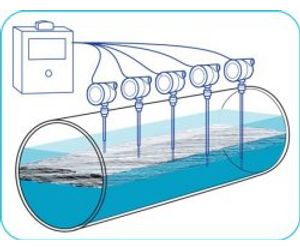

Continuous profiling of oil/water interface and emulsions in tanks. Multiple capacitance probes staggered in an oil/water separator will provide a profile of the emulsion location and thickness. The 4100-PRO uses multiple sensing probes to measure the capacitance field at distinct points within the tank. The resulting profile can be used to track the vertical location of an interface/rag layer and the emulsion thickness. The data can be used for flow control, diluent and other chemical injection, and alarms of impending control excursions. This instrument is ideal for trending of process conditions to maximize your oil/water separation efficiency.
Most popular related searches
oil-water interface
oil-water separator
oil-water separation efficiency
oil-in-water monitoring
oil-in-water
oil-in-water analyzer
oil-water separation product
water profiler
intrinsic safety
water profiling
Optional Interfaces
- Analog Output 4-20 mA non-isolated
- Communication RS-485 Modbus
- No moving parts
- Remote electronics via standard twisted pair
- All set-up, calibration and diagnostics are accessed at the control panel
- Multiple probe inputs / monitoring
- All control wiring and interface is done at the control panel
- HF capacitance technology does not require routine cleaning
- Touch screen interface for easy set-up and user interface
- Trend display of hour, day or month increments
- Unique capacitance approach mimimizes routine cleaning
- Control and interface panel mounts safely away from the process
- Process Temp.: -60˚C to +260˚C
- Ambient Temp.: -60˚C to +55˚C
- Pressure: 103 bar/10342 kPA/1500psi
- at stable temperaturepp
- Process Connection: available threaded or flanged
- Explosion Proof: CSA Div 1, Class 1, Groups C,D
- Intrinsic Safety: Approved Intrinsically Safe when ordered with Approved Barrier in Control Unit
- CAN/CSA E60079-11:
- Class I, Groups A,B,C,D;
- Class II, Groups E,F,G;
- Class III, Encl.Type 4
- CRN: ABSA-CRN #OF07450.2
- Wetted Parts: 316SS and Teflon
Probe materials are eligible for NACE MR-0175 Compliance
- Operating Temp.: 0˚C to +55˚C
- Resolution: .007% (.07 pF at 1,000 pF)
- Accuracy: .04% of full scale pF
- Power Input: 24 vdc or 80-240 vac +/-10%, 1P, 50-60 HZ
- Display: touch screen full colour tank view graphics, % and engineering units trend line selectable hours, days or none
- Relay Outputs: four SPDT, 10 amp @ 240 vac, dry
- Enclosure: Type 4 metal painted blue / IP 66
- optional Type 4X SS or polycarbonate
- Approvals to: UL / CSA / CE
- IEC 61010
