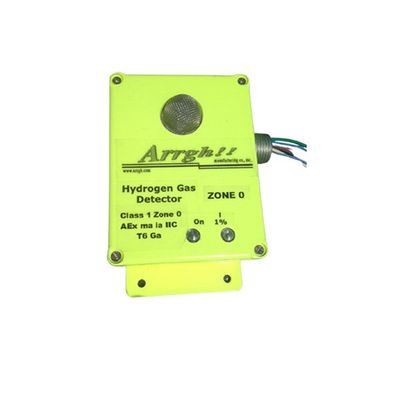

Arrgh - Model ZONE 0 -Hazardous Gas Detector
The Hazardous Gas Detector protects process rooms and other locations where Methane, Natural gas, Propane , or Hydrogen may be present by monitoring hazardous gas levels. For Meth-ane, concentrations of 5% to 15% mixed with air can be explo-sive. Sparks or hot surfaces can ignite them. The Methane gas detector will provide a warning and facilitate dissipation of the hazardous gas, by operating alarms and exhaust fans before it reaches the lower explosive limit of 5%. The Alarm is set for 1%.
In addition to protecting your property and employees, cost savings are also realized. Explosion Prevention Syst ems (NFPA 69) prevent downtime. I nsurance premiums may be reduced as a result of a Methane gas detector installation. Electricity costs decrease as a result of controlled exhaust fan operation rather than continuous fan operation. Air conditioning and heating costs are also reduced as a result of the controlled fan opera-tion.
Three models are available in AC ; Methane, Hydrogen, and Propane
- Continuous monitoring of Methane, Propane or Hydrogen gas level
- Automatic operation
- Monitors Hydrogen, Methane, Ethane, and COwith alarm activation
- LED status display
- Reliable, highly sensative, highly stable, solid state intrinsically safe sensor, Potted cir-cuit. Field replaceable pre-calibrated sensor module.
- Simple Installation
- Long operating life
Explosion Prevention Systems (NFPA 69, Chap 8) and NFPA 2 Hydrogen Technology Code compliant. They are "Nonincendive" and meet Class 1 Division 2 (NEC) Hazardous Atmosphere codes CE E x G NFPA 855.
- Protects against Methane, Propane, or Hydrogen explosions
- Inexpensive protection for your property and employees
- Decreases electricity costs as a result of con-trolled exhust fan operation
- Insurance premium reduction may be realized
- Reduces air conditioning and heating costs as a result of controlled fan operation
- Reliable, uninterupted 24/7 monitoring and control
- Simple operation
- Dimensions (LXWXH)
5” 3/4 X 3” 1/4 X 2 3/8 - Mounting
Four 3/16-inch screws - Warranty
Five year warranty
- 099180 Class 1 Div.1, ZONE 0 Hydrogen Detector 85 to 265 VAC 50/60Hz
- 099181 Class 1 Div.1, ZONE 0 Metane Detector 85 to 265 VAC 50/60Hz
- 099182 Class 1 Div.1, ZONE 0 Propane Detector 85 to 265 VAC 50/60Hz
- Wire Color
Black AC Power in
Green Ground
White AC power in
- Relay 1% Signal Points
Yellow NO
Brown Common
Orange NC
- Relay 2% Signal Points
Blue NO
Blue Common
