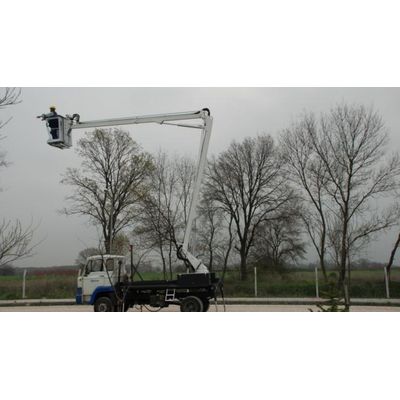

Orakci - Model OKP Series -Articulated Platforms
The equipment (OKP), which is an integral part of difficult tasks for advanced field work, has a lower investment cost compared to other platform groups. It has a restricted area in terms of working height. Articulated platforms are technically not suitable for carrying loads. It is used in different high areas such as maintenance, repair, painting, electrical works, wiping the windows, agriculture, and woodworking.
Four balance legs are independently controlled from each other, and the surface linearity is ensured using the balance indicator. Control panels located on the tower and the basket, which can be controlled independently from each other, are located on all telescopic platforms. The joystick and proportional structure in automatic algorithmic usage provide precise usage and thanks to the electrical isolation maximum security is ensured in composite personnel carrying basket.
- Working height of 10 to 18 m
- Emergency stop button on control panels
- Audio alarm system when booms are opening and closing
- Automatic basket balancing system
- System for and starting and stopping the vehicle engine from the basket
- Separately controllable outriggers
- Working area lamp
- Flow-proof composite basket up to 1000 volts
- Emergency hand pump
- Production in accordance with EN 280 standards
- Proportional Joystick controller
- 220-380 V electricity in the basket
- Aluminum basket
- Multi-purpose equipment racks
