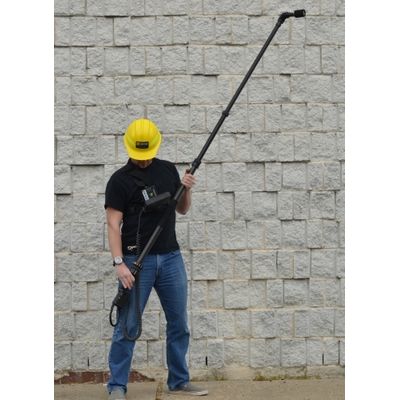

Model CYCLOPZ-A -Articulating Inspection Pole Cameras

• Industrial Grade Inspection Pole Camera with Built in Articulation
• Camera Head Diameter: 1.6”D x 2.8”L (41mm x 71mm)
• Working Length: 4.1` (1.24m) to 10.9` (3.3m), with Longer Options
• Low Light Sensitive Color Camera with 53o FOV
• 9 Bright White LED Lights
• Digital Processor to Enhance Live Image
• Large Integrated Display (5.6“/14.2 cm) with Built in DVR
• Built in Brightness, Contrast, Color, Tint, Backlight and Sharpness Controls
• Rechargeable Battery for Portable Use
• 7,500 Images or 30 hours of Video Can be Stored on a 32GB SD Card
• 3 Section Telescoping Aluminum Poles
• Distal Pole with 2-way Twist Handle Articulation 90 Degrees Each Way
• Operating Temperature -14oF to 122oF (-10oC to 50oC)
• Made in USA

Pole:

• Construction:
• Section telescoping pole, 2 internal aluminum and an external fiberglass section with foam grip
• Collars:
• Rugged, break-proof, easy grip, twist collars for each pole section
• Articulation:
• Mechanical pull cable system operated by an easy-to-use twist handle. Camera range of ± 90° with detents. Twist collar allows camera angle to be locked at any position.
• Collapsed / Extended Length: 4 ft. / 10 ft. 9 in. (1.24M / 3.3M)
• Weight: 7.2 lbs. (3.3kg)
• Case:
• Construction: Rugged, watertight, plastic carry case with foam inserts having compartments for all components.
• Size: 53” x 17” x 6” (135 x 43 x 15cm)
• Weight loaded: 37 lbs. (16.8kg)
• WalkAbout DVR:
• Display Size & Weight Standard: 8.8”W x 9.3”H x 4.3”D / 3.6 lbs. (22.4 x 23.6 x 10.9cm / 1.65kg)
• Detached Base: 6.3”W x 4.3”H x 2.9”D / 1.7 lbs. (15.9 x 10.9 x 7.3cm / .79kg)
• LCD: 6.6”W x 7.5”H x 1.3”D / 2.5 lbs. (16.9 x 19.1 x 3.5cm / 1.13kg)
• Construction: Rubber encapsulated aluminum case for shock resistance and weatherproofing
• Resolution: 640 x 480
• Display Size: 5.6” (14.2cm) measured diagonally
• Operating Temperature: -14°F to 158°F (-10°C to 70°C)
• LCD Controls: Brightness, contrast, color, tint, mirror, backlight & sharpness
• Mounting Options: Display can be worn on vest, belt or harness; detached display can also be handheld
• Video Format: Auto switches between NTSC (American) or PAL (European)
• Charger: 12VDC from either power supply or vehicle adapter
• Discharge Time: 1.66 hrs. with camera LEDs off
• Batteries: NiMH, 7.2V, 2.7AH
• Charge Time: 2 hrs. when fully discharged
• Base Controls & Indicators: On/Off switch & LED; Camera illumination control & LED; Low battery LED; DVR controls
• Connections: Camera (pole), A/V output, DC input (7.2V to 12V)
• DVR: Up to 32GB SD card; 250 stills per GB; 1hr per GB for H.264 videos

Camera Head:

• Construction: Submersible enclosure with hard-coated window
• Size & Weight: 1.6”D x 2.8”L / .28 lbs (41mm x 71mm / .13kg)
• Features: 24 Bright white LED illuminated, color camera, 480TV Lines, 6.0mm lens, 5.4 to 50° FOV, 9 Bright white LED illuminated, color camera, 270K pixels (320K/PAL), .03 lux, 6.0 mm, 53° FOV
