AS-FAKU - Grease Traps
The grease traps are used for precipitation and the capturing of grease that flows away in wastewater from kitchens, food-processing, and meat-processing plants, in order to protect sewerage systems and their equipment from clogging or sticking. ASIO, spol. s r.o. uses many types of these devices. The selection of the optimum device depends on the type of grease, its quantity, the flow volume of wastewater, etc. For example, for low volumes, simpler devices can be used that usually offer lower efficiency, and conversely, for higher volumes, devices with higher efficiency are specified, which also represents more complex technology and design. The grease traps are designed in accordance with the CSN EN 1825-1 standards, in the following versions, based on the type of material – polypropylene, polyethylene, and stainless steel. The traps bear the “CE” conformity symbol.
- AS-FAKU ER/FR - rectangular, designed to be buried in the ground
- AS-FAKU FR - rectangular, designed for free installation in a room
- AS-FAKU EO/PB - circular, double-jacketed design, for in-ground installation
- AS-FAKU EO/PB/SV - circular, double-jacketed design, for in-ground installation below the groundwater table
- AS-FAKU FOZ/MANUAL - a grease trap with mechanical equipment for pumping grease, with subsequent rinsing and equipped with manual control. The trap is designed for room installation
- AS-FAKU/AUTO - similar to the previous type, but with fully programmable automatic control
Depending on the number of meals a day, a suitable device can be approximately specified as follows:
up to 200....................size NS 2
up to 200 - 400 ...........size NS 4
up to 400 - 600 ...........size NS 7
S-FAKU ER / FR
AS-FAKU ER - rectangular - for in-ground installation
The grease traps of the ER type are designed to be buried in the ground, for connection to the external sewerage system. Their design enables installation on a concrete slab, and in the case of self-supporting versions, direct embedding in gravel-sand without concreting, so long as the trap cannot move, is positioned in a green area, and the groundwater table is not high.

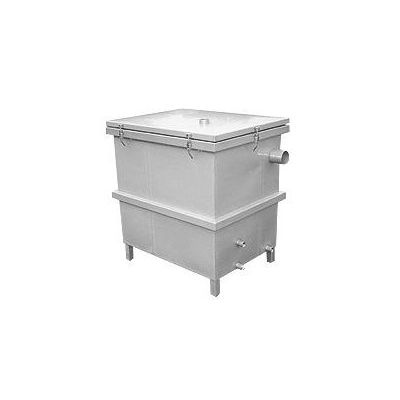

AS-FAKU FR - rectangular - for free installation in a room
The grease traps of the FR type are designed for free connection to sewerage pipes in basement rooms, cellars, etc.
