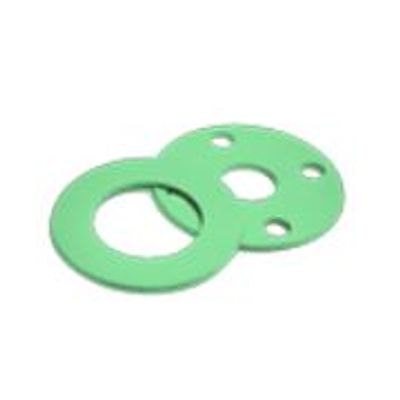

Starflex - Model 2000 -Asbestos

Asbestos free calendered material based on high quality aramid and other synthetic fibers bonded with Nitrile binder

Most popular related searches

Density (Din 3754) : 1.7 to 2 min Gm/CC
Tensile (ASTM F152) : > 10 Mpa (1,450 psi)
Compressibility (BS7531) : 10% Min
Recovery (ASTM F36J) : 50% Min
Fluid Immersion Properties :
Oil Absorption: 5 hours at 150C (BS7531) : 10% Max Weight Increase
ASTM Fuel B Absorption: 5 hours at 21C to 29C (ASTM F146) : 10% Max Weight Increase
Water Absorption at 100X (BS 7531) : 9% Max Weight Increase
Ignition Loss (DIN 52911) : <30%
Sealability Against Nitrogen (BS 7531) : <1 ml/ min
Residual Stress 16 hours at 175 C (DIN 52913) : 20 Mpa
Residual Stress : Meets BS7531 Grade Y Size: 60” x 120”, 60” x 60”

Physical Properties
