Ascon Tecnologic S.r.l.

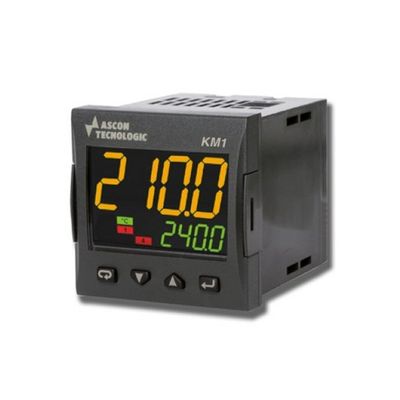

Ascon Tecnologic - Model KM1 -Controller with Independent Timer
KUBE series: the evolution that has something more! Pocket size, energy saving and advanced functions: evoGreen – for Energy Saving. evoTune – for “trouble-free” adjustment. evoTools – code-based configuration for fast commissioning and programming key for instant parameterization. User calibration for sensor position compensation. Independent timer function with 5 operating modes. Hour meter/working days with 2 functions and programmable alarm. Calculation of power and energy consumption (Wattmeter). Freely customizable parameter sequence.
Most popular related searches
- FUNCTION : Controller
- DIMENSIONS : 48 x 48 mm
- DISPLAY : 2 display with 4 digit 3 dynamic colours
- POWER SUPPLY : 24 Vac/Vdc, 100… 240 Vac
- INPUTS : 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal
- NUMBER OF OUTPUTS : 1, 2, 3, 4
- OUTPUTS : Relay and/or SSR control
- DIGITAL INPUTS : 1, 2
- INDEPENDENT TIMER : Yes
- INTERFACE : RS 485 Modbus Slave, TTL Modbus
- SPECIAL FUNCTIONS : Digital retransmission, Hours/Days worked, ON time, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter
- CONTROL : ON/OFF and PID single or double action
- EXTRACTABILITY : Not extractable, With fix terminal block, With removable terminal block
- CERTIFICATIONS : CE, UL
