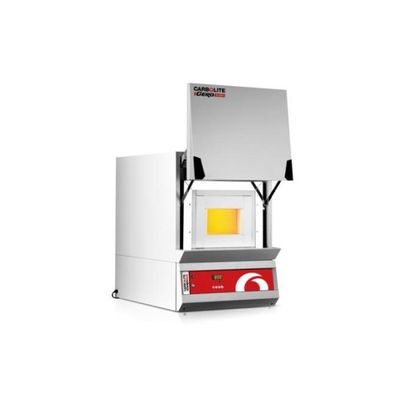

Carbolite - Model GSM 11/8 -Ashing Furnace
Some analysis techniques may be affected by alumina or silica dust (Al2O3 at SiO2) - the materials normally used to construct furnace chambers. To avoid this the GSM furnace chamber is constructed from a fused quartz material. This design also offers superior containment of aggressive and corrosive vapours such as sulphuric, nitric and hydrochloric acids by keeping them away from the heating elements. Additionally if an optional gas inlet is specified, the enclosed design minimises gas leakages from the chamber.
Most popular related searches
ashing furnace
chamber furnace
furnace
hydrochloric acid
contamination testing
data logger
contaminant testing
containment tray
test chamber
type k thermocouple
- 1100°C maximum operating temperature
- Fused quartz furnace chamber, ideal for analyses where Al2O3 or SiO2 could contaminate test results
- Chamber lining offers superior containment of corrosive & aggressive vapours such as H2SO4, HNO3, HCl
- Moulded ceramic fibre door plug
- 4 sided heating (2 sides, roof, hearth)
- Gas Inlet for modified atmospheres (the fused quartz liner provides improved containment)
- Sample trays & racks
- A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
GSM 11/8
- Max temp (°C): 1100
- Heat-up time (mins): 70
- Max continuous operating temp (°C): 1000
- Dimensions: Internal H x W x D (mm): 120 x 175 x 345
- Dimensions: External H x W x D (mm): 655 x 435 x 750
- Dimensions: External with door open H x W x D (mm): 895 x 435 x 750
- Dimensions: Height to top chimney (mm): 1060
- Volume (litres): 8
- Max power (W): 3050
- Holding power (W): 1700
- Thermocouple type: K
- Weight (kg): 57
Please note
- Heat up rate is measured to 100°C below max, using an empty chamber
- Holding power is measured at continuous operating temperature
- The maximum depth to accommodate the door opening arc is 810mm
- Maximum power and heat up times based on a 240V supply
