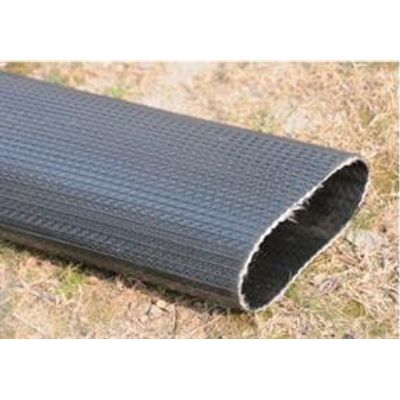

ASOE - Model LONGMAN 450 -Nitrile Rubber Layflat Hoses
Circular polyester weave extruded internally and externally with NBR-PVC. Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highly resistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.
Most popular related searches
drainage pumping
drainage pump
fracking water
water discharge
fire fighting
drainage water
fire fighting water
drainage installer
laboratory homogenizer
water pump
Lining Properties:
- Ultimate Tensile Strength: Tensile strength of the lining and cover shall not be less than 1500 psi (10,500 kpa ).
- Ultimate Elongation: 400% minimum.
- Accelerated Aging Test
The tensile strength and ultimate elongation of the vulcanized rubber compound which has been subjected to the action of oxygen at a pressure of 300 psi +/- 10 psi , (2100kpa +/- 70kpa) and temperature of 70 degrees centigrade +/-1 degree centigrade (158 F +/- 18 F ) for a period of 96 hours shall be , greater than 60% of the original properties stated.
- Color:Black ribbed
- Temperature range:From -20 C deg to 80 C deg (-4 F deg to 176 F deg)
- Elongation at WP:<1.5%
- Expansion at WP:<6%
- Abrasion:6000 DIN cycles
- Standard Length: 660ft
- Washdown
- Drainage pumps
- Water Discharge
- Drainage
- Irrigation installations
- Pumping of sludge and liquid fertilizers
- Temporary installations (by-passes)
- *Not recommended or approved for fire fighting or frac water transferring.
