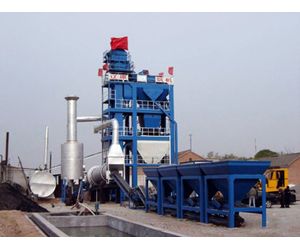

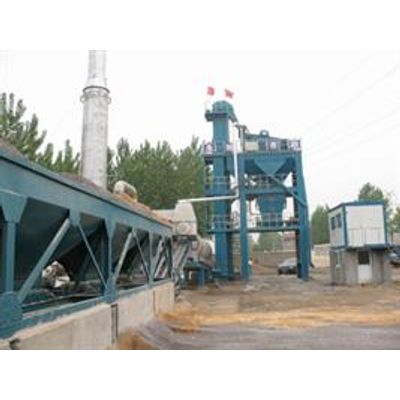

Model LB500 -Asphalt Batching Plant

SHARE

Model: LB500. Capacity: 40 t/h(Standard Working Condition). Mixer: 500kg/batch. Fuel Consumption: Diesel: 5.5-7kg/t; Coal:10kg/t. Air Emissions: ≤20mg/Nm3. Working Noise: ≤70db(A). Installation Power: ≈153kW. Voltage: 220V/380V-50Hz (adjustable). Plant Covering Area: Length:25m; Width:20m; Height:12m.

Most popular related searches
dust collection system
asphalt plant
workplace noise
air emissions
dust collection
batch mixer
water supply
coal emissions
water collection
dust collector
  1. Cold Aggregate Feed System: 4*4 m3 storage bins
  2. Drying Drum: Φ1200*5200mm
  3. Oil Burner: made in Italy, capacity: 500kg/h
  4. Dust Collection System: water collector
  5. Filler Supply System: 0.5m3 filler bin(adjustable)
  6. Bitumen Supplying System: 1*20m3 bitumen tank(adjustable)
  7. Mixing Tower: 500kg/batch twin shaft mixer, 22kW Siemens`s motor
  8. Pneumatic System: 1.05Nm3/min air compressor
  9. Finished Asphalt Storage Bin: 30t storage bin under mixer
  10. Control System: PLC control system(language for optional)
