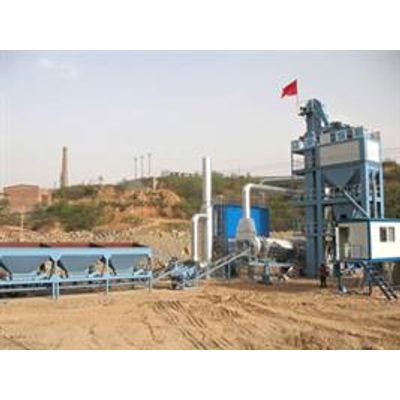

Model LB2000 - Asphalt Batching Plant



Model: LB2000. Capacity: 160t/h (Standard Working Condition). Mixer: 2000kg/batch. Fuel Consumption: Diesel: 5.5-7kg/t; Coal:10kg/t. Air Emissions: ≤20mg/Nm3. Working Noise: ≤70db(A). Installation Power: ≈470kW. Voltage: 220V/380V-50Hz (adjustable). Plant Covering Area: Length:45m; Width:32m; Height:17m.

  1. Cold Aggregate Feed System: 4*8.5 m3 storage bins
  2. Drying Drum: Φ2200*8000mm
  3. Oil Burner: made in Italy, capacity: 2000kg/h
  4. Dust Collection System: bag house collector
  5. Filler Supply System: 1*30m3 filler bin(adjustable)
  6. Bitumen Supplying System: 3*30m3 bitumen tank(adjustable) with thermal oil heating system
  7. Mixing Tower: 2000kg/batch twin shaft mixer, 2*37kW Siemens's motor
  8. Pneumatic System: 2.0Nm3/min air compressor
  9. Finished Asphalt Storage Bin: 30t storage bin under mixer
  10. Control System: PLC control system(language for optional)
