Astorplast - Model Y -HDPE Filter System

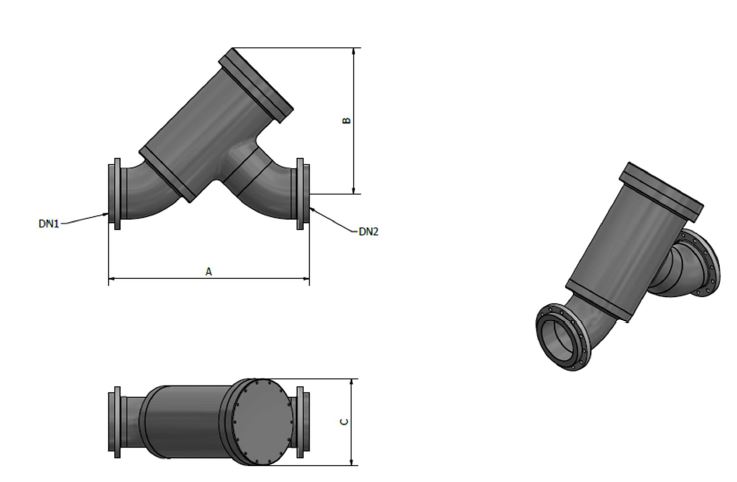

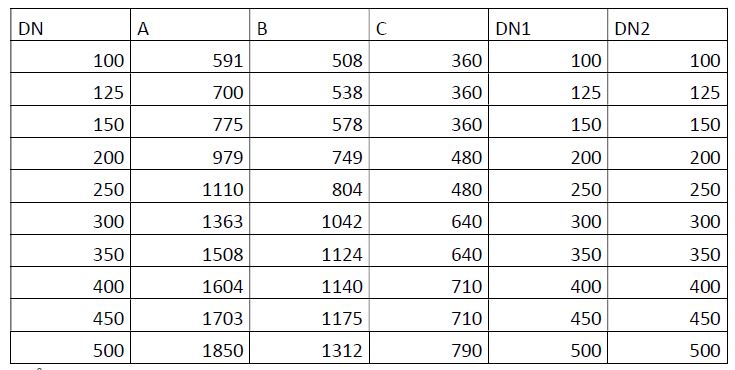

Dimensions

• DN 100 – DN 500

Pressure rating

• Max 6 bar*

Range of applicaton:

• Fresh water, seawater

Delivered with following options

1. Stainless steel insert
2. Backflush port
3. Pressure sensor optional
4. Segmented insert

*Tested at 8 bar
