Astronode - Patch Antenna
FromAstrocast

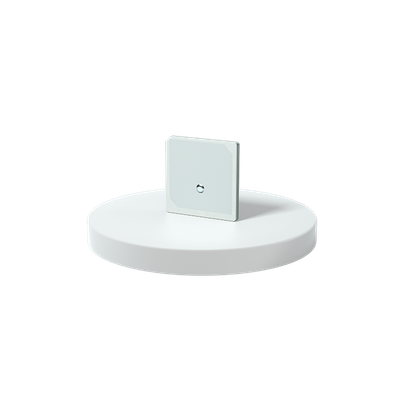

The Astronode Patch Antenna is a compact ceramic patch antenna specifically designed for optimal performance on the Astrocast nanosatellite IoT network. This antenna facilitates bidirectional communication in the L-Band and provides GNSS reception for tracking purposes. It is a cost-efficient solution for satellite connectivity, featuring a minimal footprint and passive design. With its small form factor, it delivers impressive performance in various weather conditions. The antenna generally works best with a ground plane of at least 65 mm x 65 mm and requires careful design of the antenna line on the PCB to match 50 Ohm impedance. Its multi-band capability allows it to be used both for data communication over the Astrocast network and for GNSS data reception. For comprehensive technical details and documentation, users are encouraged to visit the Astrocast Documentation Platform. The Astronode Patch Antenna is available for purchase via Mouser and offers volume discounts.Most popular related searches
BIDIRECTIONAL
Bidirectional communication in the L-Band as well as GNSS reception for tracking purposes.
COST-EFFICIENT
Passive antenna with minimal footprint for cost-effective satellite connectivity.
SMALL FORM FACTOR
L-Band enables the design of compact antennas with good performance in all weather conditions.
- Wide beamwidth
- L-Band: 1.5 GHz & 1.6 GHz
- GNSS reception: L1 band
- Impedance: 50 Ohm
- Dimensions: 35 mm x 35 mm x 4 mm
- Weight: 18 g
