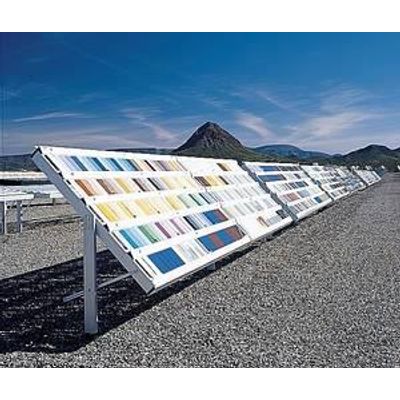

Atlas - Air Circulation Weathering System
Allows for majority of specimen material to be exposed to circulation of ambient air, Racks specifically angled to best replicate end-use conditions. Exposures for a variety of sizes from small coupon-sized samples to window assemblies and automotive components, to entire vehicles.
Most popular related searches
weathering testing
weathering test
sample temperature
ambient air
exposure standard
ASTM standard
air modeling
Backed Exposures -
Specimens mounted to substrate typically 12 mm exterior-grade plywood, to simulate end-use environment by insulating back sides of specimens and increasing sample temperature
Racks specifically angled to best replicate end-use conditions
Fixed or variable angle, open-backed or backed exposures meet the following standards:
- AATCC 111B
- ASTM D1006
- ASTM D1014
- ASTM D1435
- ASTM D3679
- ASTM D4726
- ASTM G7
- ECCA T19
- Ford FLTM B1 160-01
- GM 3619M
- GM 9163P
- GM 9327P
- GM 9785P
- ISO 105-B03
- ISO 877
- ISO 2810
- ISO 4665 part 2
- ISO 8565
- SAE J1976
Black Box Exposures -
- Simulates air heat-sink characteristics of automobile bodies and increases sample temperature
- Black painted, metal box
- Panels on exposure cover the open top of the box and reach temperature comparable to those of hoods, roofs and deck lids of automobiles parked in direct sunlight
Black box exposures meet the following standards:
- ASTM D4141 A&B
- ASTM G7
- GM 9163P
- SAE J1976
