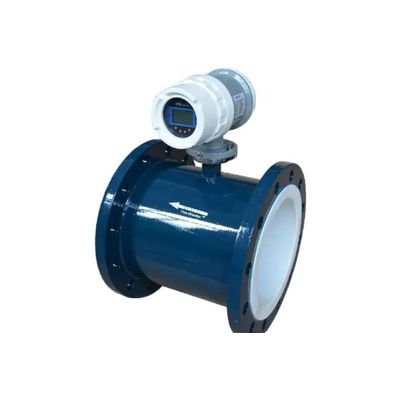

ATLAS - Model DN-1000 -Electromagnetic Flowmeters
Electromagnetic flowmeters are engineering marvel magnetic flowmeters. There are no parts in this model flowmeters that prevent or restrict the flow. The device provides ease of wiring by isolating the electronic environment from the measurement area. Electromagnetic flowmeters adopt low frequency warning method and multi-sensor technology. In this way, they have 10 times more measurement scale than other flowmeters.
Electromagnetic flowmeters can be easily used in all liquids with conductivity above 20 uS. They provide healthy and long-lasting measurement by changing the sensor selection in liquids with corrosive properties according to different substances. The inner surface can be preferred as rubber or PTFE. The device, which allows density adjustment, flow rate unit adjustment, temperature adjustment, can be used safely in different liquids with all kinds of densities. The device menu is user-friendly and allows security settings with 4 different encryptions.
- Fast response time and high stability
- High precision up to 0.2%
- Double housing cavity to separate the electronic partition
- AC power or 24VDC supply option
- 2-way measurement (forward (positive) measurement and reverse (negative) measurement) and NET sum feature
- Analog, Frequency and Pulse output features
- RS485; RS232; HART; Profibus; MODBUS etc. communication options
- Lower limit and upper limit alarm output features
- There are no mechanical parts blocking the flow or reducing the pressure.
- Measurement scale; 10 times more than other flow meters.
- All measurements and adjustments can be made/displayed on the integrated or wall-mounted LCD display.
- Composable according to the process and fluid with the user interface (Density setting can be entered)
- The menu can be password protected.
- Instantaneous and total flow can be observed simultaneously on the LCD screen.
- Old data can be analyzed with the report feature (daily, weekly, monthly, yearly)
- Provides resistance to environmental electronic noise through the grounding electrode.
- Reliable, easy and long-lasting installation thanks to flange connection.
- Total flow rate can only be reset by password
- Flow rates between 0.3 and 15 m/s can be measured and the speed can be monitored on the LCD display.
- Calibration (full and stable fluid filled pipe) can be done with the menu.
- Measurement accuracy of 0.2% can be achieved
- Conductivity can be measured and displayed on LCD screen.
- Measures all homogeneous conductive liquids above 5 uS.
- Protected against external factors thanks to its metal body.
