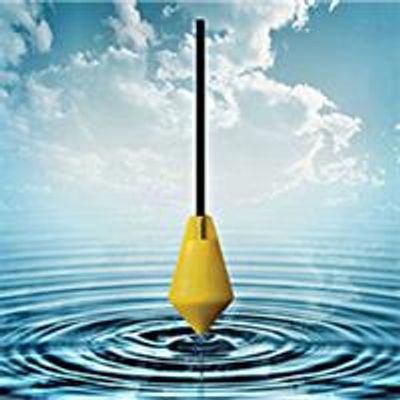

ATMI - Model BIP Stop -Level Switch for Pump Control
The BIP STOP is a small float switch designed for the automatic control of small pumps (until 1.5 CV) .Thanks to its wide switching angle of 110º, the BIP STOP protects the pump`s engine and the electrical panels from jerking. This feature is highly appreciated in agitated liquids. Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter.These float level switches are used wherever magnetic level controllers can not be used because of impurities or deposits that may trap the float. The BIP STOP level switch is available in three versions :
The BIP STOP VR is the standard version. On request, it can be equipped with a cable with ground wire with plug multifunction to activate the pump by connecting it directly from the plug of the float.
Very reliable, it is used in a wide range of applications ...
- ECONOMIC
- ECOLOGIC
- RELIABLE
- WATERPROOF
- BICONICAL
- CUTOMIZABLE
- Switching angle +/- 110°
- Allowed fluid density 0,70 to 1,15
- Power supply 250 - 400 VAC /VDC 50/60 Hz
- Cut out power 20 (8) A (20 A resistive; 8 A inductive)
- Maximum pressure 3,5 bars
- Allowed temperature 85 °C
- Protection index IP 68
- Housing material Copolymer Polypropylene
- Cable 3 x 1 mmm² Neoprene, HR HY
- Weight 105 g
- Dimenssion Height : 130 mm - Diam : 70 mm
- Ballast 175 - 250 g résine chargée
- Cable lenght 5, 6, 10,13, 15, 20, 25 et 30
CABLE CLAMP
Fixing accessory strongly recommended for all suspended floats
- Avoid the risk of deterioration of the cable
- Easy installation
- Precise cable adjustment at all times
AJUSTABLE BALLASTS
Adjustable ballast are essential for good operation of the floats level switches.
- Set the rotation point of the float.
- Allow the float to work in a wide range of densities
- Precise adjustment at any time to adapt to any turbulence in the liquid
