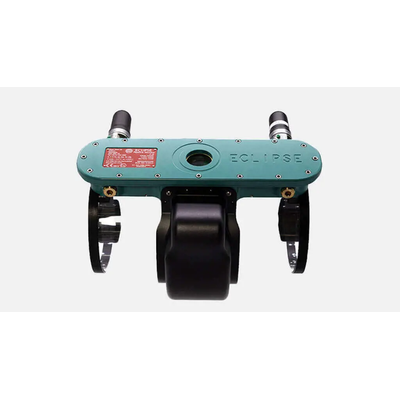

AtmosModel Eclipse -Leak Detection System

SHARE

Essential non-intrusive instrumentation as part of your leak detection system. Atmos Eclipse provides essential instrumentation as part of a leak detection system in one ATEX package that’s easy to install and designed for rapid deployment.

Most popular related searches

How do you provide a leak or theft detection system to a pipeline which has limitations such as

  • Lack of communication
  • Lack of power
  • Lack of instrumentation
  • Lack of housing for the equipment

Working with Atmos Wave Flow Atmos Eclipse improves leak detection performance, including sensitivity, response time and leak location accuracy.

See how Atmos Eclipse has overcome pipeline leak detection challenges and how it has helped TotalEnergies Marketing Belgium to successfully detect multiple theft events.

  • Voltage: 24 Volts DC/90-250 Volts AC
  • Power: 7.2 W
  • Operating temperature: -20 C to +60 C
  • ATEX/IECEx: Zone 1 Gas IIA, T6
  • Ingress: IP66 (IP68 options available on request)
  • Material: Aluminium 6082 t6
  • Coating: Epoxy
  • Communications: 3G, TCP/IP, 862-928 MHz RF Link or RS485
  • RF output: <1-2 W
  • Sample rate: 60 Hz
  • Pipe diameters: 4” to 48”
  • Cable entries: 4xM20x1.56 g
  • Weight: 6.6 kg
