ATRAD - Model BLR12/27 -Atmospheric Boundary Layer Radar (BLR) Systems
FromATRAD Pty Ltd.
The ATRAD Atmospheric Boundary Layer Radar Systems BLR12/27 has been specifically designed for wind profiling a localised area at heights between 300 metres and 8 kilometres above ground level. Typical system configurations include a 12kW solid-state transmitter and 27 three-element Yagi antenna array. System frequency is set at factory within the range of 30 – 64 MHz.
Most popular related searches
atmospheric boundary layer
wind profiling
radar system
atmospheric pollution dispersion
meteorology atmospheric monitoring
atmospheric pollution
weather balloon
remote monitoring
pollution dispersion
meteorology research
The BLR12/27 has many applications, which include:
- Weather forecasting and now-casting
- Atmospheric and meteorological research
- Monitoring atmospheric pollutant dispersal
- Wind profiling for airports and aircraft landing strips
- Rocket launch support
- Special event locations
- Weather balloon launch sites
- Glider and commercial ballooning sites
Data acquisition and analysis
- Exciter: Single channel, 16-Bit
- Measurement range: 300m-8,000m
- Range resolution: 100m – 4,000m (software selectable)
- Range gates: Up to 6,000
- Analysis modes & displays: Full Correlation Analysis, Wind Barb, Wind Field, Wind Profile, SNR Profile
- Data output formats: BUFR, AXF
- Remote Control: Remote monitoring and control via internet, Ethernet or dialup modem

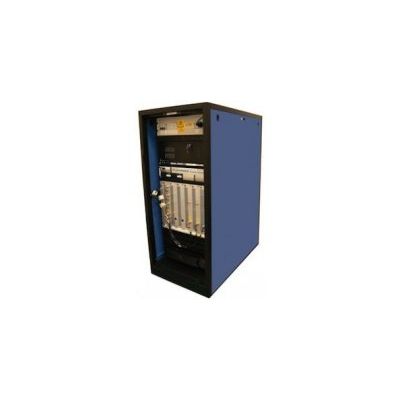

Transmitter/Receiver
- Receiver: 3-Channel, 16-bit
- Frequency: 30-64 MHz (Fixed frequency)
- Transmitter power: 12kW (also available in 20kW)
- Combiner method: Transmitter module outputs combined and then split; provides improved phase matching and allows for graceful degradation.
- Transmit/receive switching: T/R switches integrated in combiner/splitter unit
- AC Mains Power: 220-240V AC 3-Phase or 110-120V AC 3-Phase
Antenna array
- 27 three-element Yagi Antennas arranged in three groups of 9 antennas. Can be supplied in all-stainless steel construction, or aluminium and galvanised steel.
- Antenna Array Footprint (at 55 MHz): 32.1m x 32.1m
