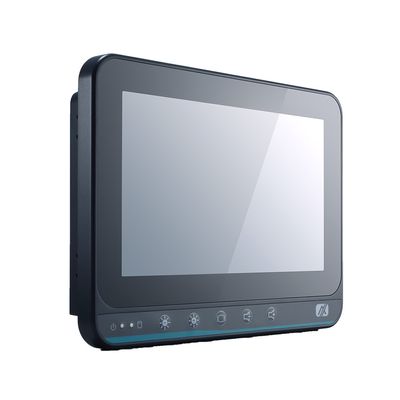

ATXModel GOT107W-319 -Light Fanless Touch Panel PC

SHARE

The GOT107W-319 adopts a 7-inch WSVGA TFT LCD display with a projected capacitive touchscreen, 320 nits of brightness and LED backlight. It is powered by the Intel® Celeron® processor N3350 or Intel® Pentium® processor N4200. With a super slim design, the noise-free IP65-rated 7” widescreen touch panel PC, GOT107W-319, is well-suited for digital signage display, self-service kiosk, industrial control, IoT-related applications and more. Besides IP65-rated front bezel, the rugged GOT107W-319 is equipped with aluminum back chassis, which offers enhanced heat dissipation to ensure stable and reliable operation. The all-in-one touch panel PC also has five membrane keys on its front bezel, providing end-users with enhanced convenience for control of the LCD on/off, LCD brightness and volume. It also features RS-232/422/485 with RI/5V/12V selectable by BIOS - no need to open the back cover to change jumper settings.

Most popular related searches
  • 7" WSVGA TFT LCD display with LED backlight
  • Fanless design with Intel® Celeron® processor N3350 or Intel® Pentium® processor N4200
  • 2 GbE LAN, 2 USB, and 2 COM ports
  • Plastic and IP65-rated front bezel
  • External AT/ATX mode selection switch
  • Easy access storage & RAM design
  • Supports panel mount, wall mount, VESA arm, and desktop stand
  • RS-232/422/485 with RI/5V/12V selectable by BIOS
  • Programmable OSD function key

LCD Panel
  • 7" WSVGA TFT LCD
  • 320 nits
  • 1024 x 600 pixels
CPU
  • Intel® Celeron® processor N3350 up to 2.40 GHz
  • Intel® Pentium® Processor N4200 up to 2.5 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x mSATA (default storage)
  • 1 x MicroSD card
Expansion
  • 1 x M.2 Key E for wireless module
  • 1 x Full-size PCI Express Mini Card slot
Others
  • 1 x Screw type connector for power
  • 1 x Power button
  • 1 x AT/ATX switch
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • 9 to 24VDC with adapter cable
Power Comsumption
  • 20.4W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 2G, 5 to 500Hz, random for SSD
Dimensions
(W x D x H)
  • 192 x 37.4 x 145 mm (7.56" x 1.47" x 5.7")
Weight (net/gross)
  • 0.75 kg (1.65 lb)/2.0 kg (4.41 lb)
Certifications
  • CE, FCC class B
EOS
  • Windows® 10
Mounting
  • Panel mount kit
  • Wall mount kit
  • Stand kit
  • VESA arm
