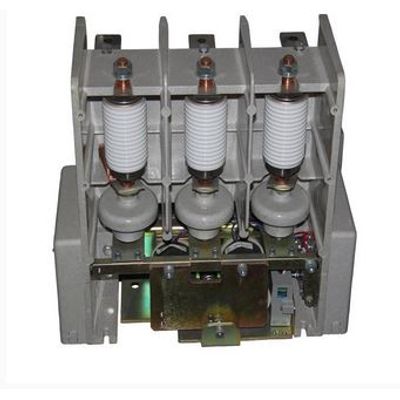

Aubo - Model 160A -JCZ5-7.2D/12D -High Voltage AC Vacuum Contactor

The dynamic conduction lever of 3-P Vacuum Interrupter is connected via 3 insulators and the Check-In/Out board, the Check-In/Out board and dynamic armature are fixed on the rotating shaft. With the electro-magnetic coil attracting and releasing the dynamic armature, it drives the dynamic contact end inside the Vacuum Interrupter to complete the Check-In/Out action. Since this action is performed in vacuum environment, therefore, the best switch performance can be achieved. That features long operation endurance and safe & reliable. The Control Circuit provides the rectifying device and the conversion of electro-magnetic coil from attracting and maintaining. Also, the auxiliary switches with 3 groups of normal On and 3 groups of normal Off are provided to user.

working conditions:

• Ambient Air Temperature: -25℃～+40℃，24-hour average must NOT exceed +35℃;

Altitude: 2000m or Lower;

• Relative Humidity: Daily average less than 95%, Monthly average less than 90%, Must NOT exceed 50% when Ambient Air Temperature reaches +40℃;
• Operation Environment: Ambient air shall not be contaminated by corrosive, flammable or explosive gas and water vapor, Contamination Level: Level III；
• Installation of Contactor:When operating, the tilt angle between the surface of installed contactor and the horizontal plane shall NOT exceed 5°
• Note: In case the above mentioned applicable conditions are not satisfied the actual user requirements, user can contact the manufacturer to consult for special treatment on the product.

Payment terms:

1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment

Why choose us:

1. ISO9001,Gold golden supplier
2. Monthly Production Capacity -- 10000Pcs
3. All goods examined before delivery by staff
4. Prompt Reply Within 12 Hours
