Traffic Control Products Inc. (TCP)

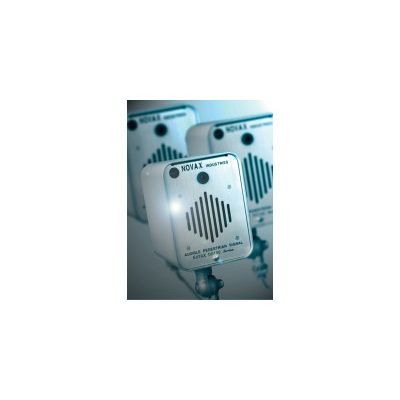

- Model DS100 Series - Audible Pedestrian Signals



DS100 Series APS units improve crosswalk safety for visually impaired pedestrians. For a broad range of basic functions, the DS100 Series offers great value at reasonable cost. Up to 4 Walk “Cuckoo” & “Peep” sounds approved by Transportation Association of Canada and other North American transportation authorities. Dynamic Volume Compensation for high audibility. Customized voice messages (optional). Easy Installation—no internal adjustment required. Sound Inhibit or Button Actuated Timer (optional) for noise sensitive areas.

RELIABLE: Advanced electronics offers minimum power consumption and long unattended life. Most adjustments can be made without opening the case. The rugged case shields the components against the elements and the heavy duty locking swivel arm protects connecting cables from vandalism.

INTELLIGENT: Dynamic Proportional Volume Compensation monitors ambient noise level and adjusts output to ensure audibility of signal. Normally preset to +5 dB above ambient noise.

NOISE-FRIENDLY: Sound Inhibit (optional) allows the audible signal to be disabled at sensitive periods, during complex traffic phases,or as required. Button Actuated Timer (BAT) (optional) generates WALK sounds only when needed: Holding the WALK button down for 3 seconds (duration is adjustable) actuates the audible signal to trigger with the WALK visual signal.

Electrical: 4 wires 20 gauge. (120 VAC from pedestrian indicator)
Power: 115VAC ±20VAC, 60Hz, 3 Watts.
Transient Protection: Common mode; fuse
Dimensions: cm: 13L x 10W x 13H (5” x 3.75” x 5”)
Output: Infinitely adjustable from 0 to 90 dB @1 meter. Output self-adjusts to +5 dB above street noise level, up to a maximum of 90 dB.
Color: Standard grey dry powder coated; other colours customer specified.
Temperature: Operational from -37°C to +74°C (-35°F to +165°F)
Enclosure: Weather-proof housing. External adjustments—no dismantling required.
Loudspeaker: Water proof, UV resistant, vinyl impregnated cloth.
Mounting: Positive lock heavy-duty swivel.
Weight: Approximately 0.3 Kg (0.75 lbs.).
Conformance: Canadian MUTCD (A6.10.3), FHA MUTCD (4E.06) TAC APS Guidelines March 2007.
Certification: Warnock Hersey approved to CSA C22.2
