METRA Energie-Messtechnik GmbH

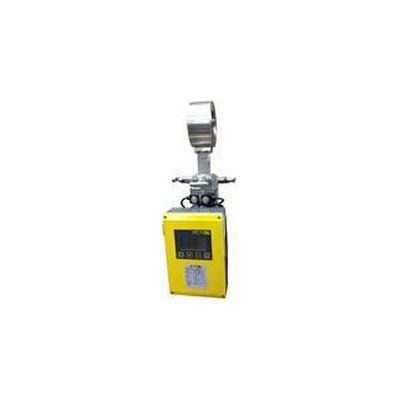

autarkon - Model EDZ / EWZ 120.1 (127.1) -Differential Pressure Steam Measuring Meter
Flow / energy meter for saturated and superheated steam is adapted by the opening ratio of the orifice plate to the metrological requirements. This achieves optimum utilization of the available measurement range.
Most popular related searches
restriction orifice union
data logger
mass flow
pressure monitoring
differential pressure monitoring
steam flow monitoring
differential pressure flow meter
steam flow meter
flow monitoring
flow meter
Function
measuring and registering the mass flow and energy of steam
Technische Eigenschaften
- highly suitable for billing purposes
- traceable standardized measurement, based on international valid rules and regulations,ISO 5167, large confidence range
- insensitive to vibrations
- compact, highly-integrated measuring system (pressure and temperature compensationintegrated in the measuring device), easy and cost-effective Installation
- wide dynamic range (up to 30:1) and small measurement uncertainty (1 % of measured value)
- fast data acquisition and calculation (approximately 10 times per second)
- long term stability, because of automatically hydraulic zero balance and self test
- plausibility and accuracy test during operation
- low-maintenance
- signal output:
- standard 2x (0)4-20 mA / 2x frequency / pulse / status, M-Bus / Modbus (optionally up to 6x (0)4-20 mA, 6x frequency / pulse / status, additional M-Bus interface, RS 485, Ethernet interface)
- extensive data logger function
