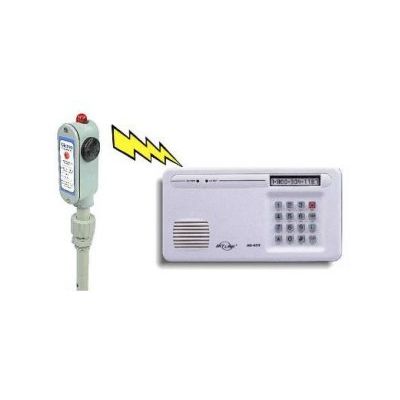

Gizmo Engineering - Auto Dialer

Record an emergency message of up to 40 seconds in length. When a level alarm signal is sent to the AutoDialer, it will begin its sequence of calls, dialing up to 9 phone numbers and playing your message as many as 9 times during each call. If the line is busy, the AutoDialer will redial the number up to 9 times, waiting for a user-selectable length of time in between attempts.

Program the numbers to be dialed using the AutoDialer`s backlit keypad. The automatic dialer supports both tone/pulse dialing and PABX systems. You can even use this system to dial a pager number, inserting pauses when necessary. You won`t need to worry about dialing out if they phone is in use: The Auto Dialer will automatically override the phone line for an emergency call.

Additional transmitters can be added later as the base station can "learn" new codes.

• Easy to program.
• No monitoring fees.
• Memory for 9 emergency telephone numbers.
• Can be activated by several different level alarms.
• Versatile phone system selection (PABX or residential phone system, tone or pulse, pager or cell)
• Stores emergency voice message up to 40 seconds.
• Dials each phone number up to 9 times.
• Repeats emergency message to a telephone number up to 9 times.
• Automatically override the occupied line for emergency call
• AC adapter with low battery indication.

• Communications Frequency : 433MHz
• Power consumption (transmitting) : 50 mA
• Power requirement : 9-12 VDC
• Wireless Range (line of sight) : 100 ft
• Dimensions : 8" x 4 1/8" x 1 1/8"
• Message Length : 40 seconds, max.
• Numbers Dialed : 9, max.
• Dialing Frequency : 9 times each, max.
• Message Repeating : 9 times, max.
• Battery Life : 10 years max.
• Sensors : 16 max.
• Approvals : FCC/IC compliant
• Warranty : 1 year, limited
